Ergotron 24-190-085 flat panel cart stretches your investment by
serving a variety of projection needs. Features include

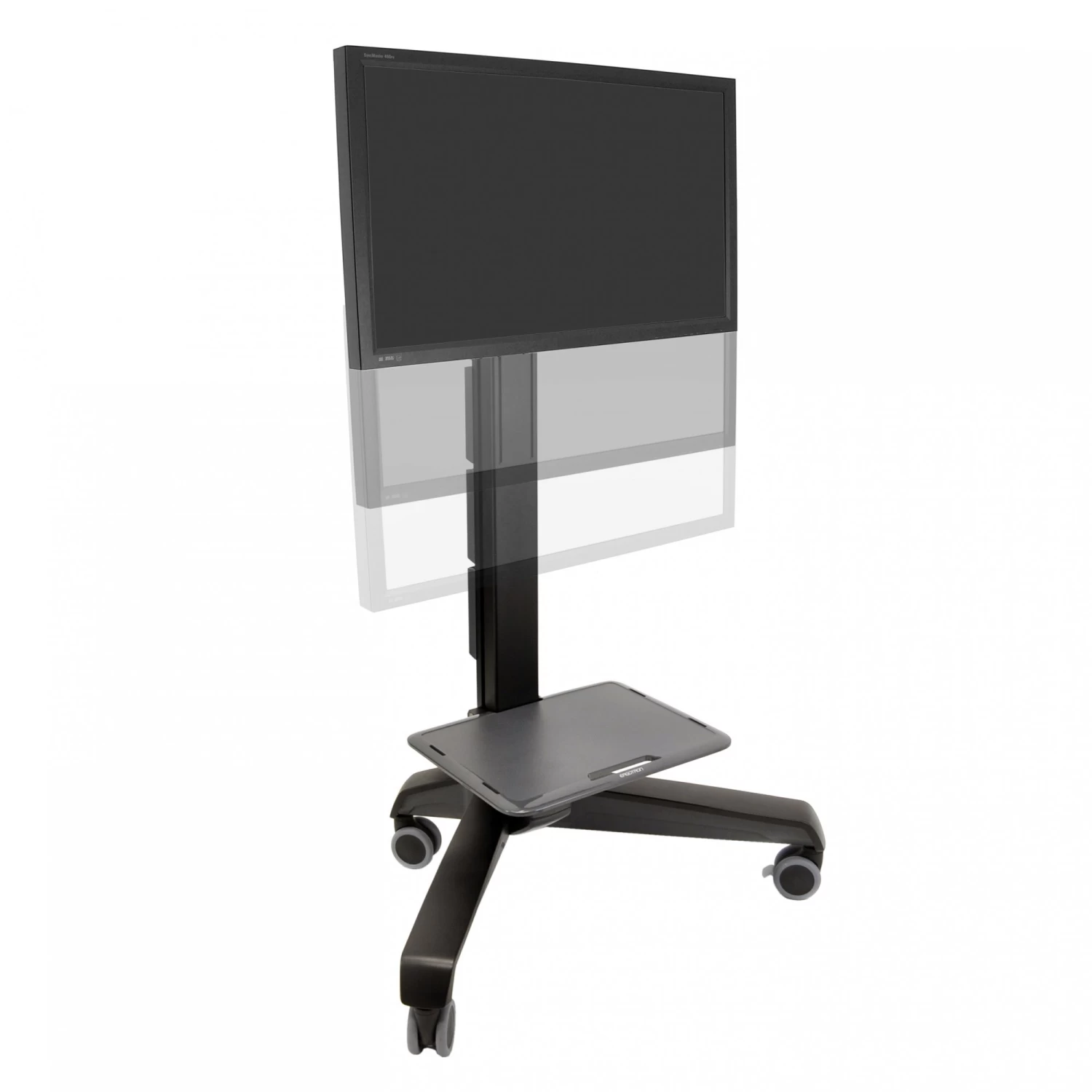

portrait-to-landscape rotation, 20″ (51 cm) effortless height adjustment
and 20° independent display tilt. Handles displays weighing 25–50 lbs
(11–23 kg). Get optimal positioning for both seated and standing
audiences, in any application, in any part of your facility.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| 27″ – 60″ | 25 – 50 lbs 11.3 – 22.7 kg | 20″ 50.8 cm | 20° | – | 90° | MIS-D/E/F |
Product Information
| Part Number | 24-190-085 |
| Neo-Flex Mobile MediaCenter LD, Light Duty (black) | |
| Includes |
|
| Complies | With UL Tip Standards 1667 and 1678 |
| Shelf | Rugged plastic-composite shelf conveniently attaches to cart at any height |
| Cable Channel System | Modular cable channel system is adaptable for various wiring configurations |
| MMC Camera Shelf Kit | Add the MMC Camera Shelf Kit to place adjustable camera shelf above the display (ordered separately); shelf is not compatible with the NF MMC LD, 24-190-057, when using the optional small LCD monitor pivot (includes 75 mm and 100 mm mounting holes), which is typically used with 25 lbs (11. 4 kg) to 36 lbs (16.3 kg) displays. As an alternative, the NF WideView cart, 24-189-055, does accommodate this size monitor and a camera shelf |
| CPUs | CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12″ H x 3″ D to 18″ H x 8.5″ D (300 x 80 mm to 460 x 220 mm) |
| Screen Size | Listed screen size represents typical size of display used with this cart. However, weight of display and its VESA hole pattern – not its screen size – are the determining factors for compatibility |
| Weight Capacity | Display = 25–50 lbs (11.4–22.7 kg); maximum display weight will be diminished if deploying display with smaller hole pattern (see below). Main shelf = 30 lbs (13.6 kg); cable shelf = 5 lbs (2.2 kg); if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 5 lbs (2.3 kg) |
| Mounting Hole Patterns | Horizontal measurement = 100 mm, 200 mm, 300 mm, 400 mm, 500 mm or 600 mm. Vertical measurement = 100mm, 200 mm or 225 mm to 400 mm. Also accommodates MIS-D 75 x 75 mm hole pattern (weight capacity is limited to 36 lbs/16 kg with this hole pattern) |
| Note | Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology) |
| Shipping Dimensions | 66″L x 20″H x 14″D (1680 x 503 x 335 mm) |
| Shipping Weight | 101 lbs (46 kg) |
| Warranty | Three (3) years |
Benefits
-
Move digital content to where you need it
-

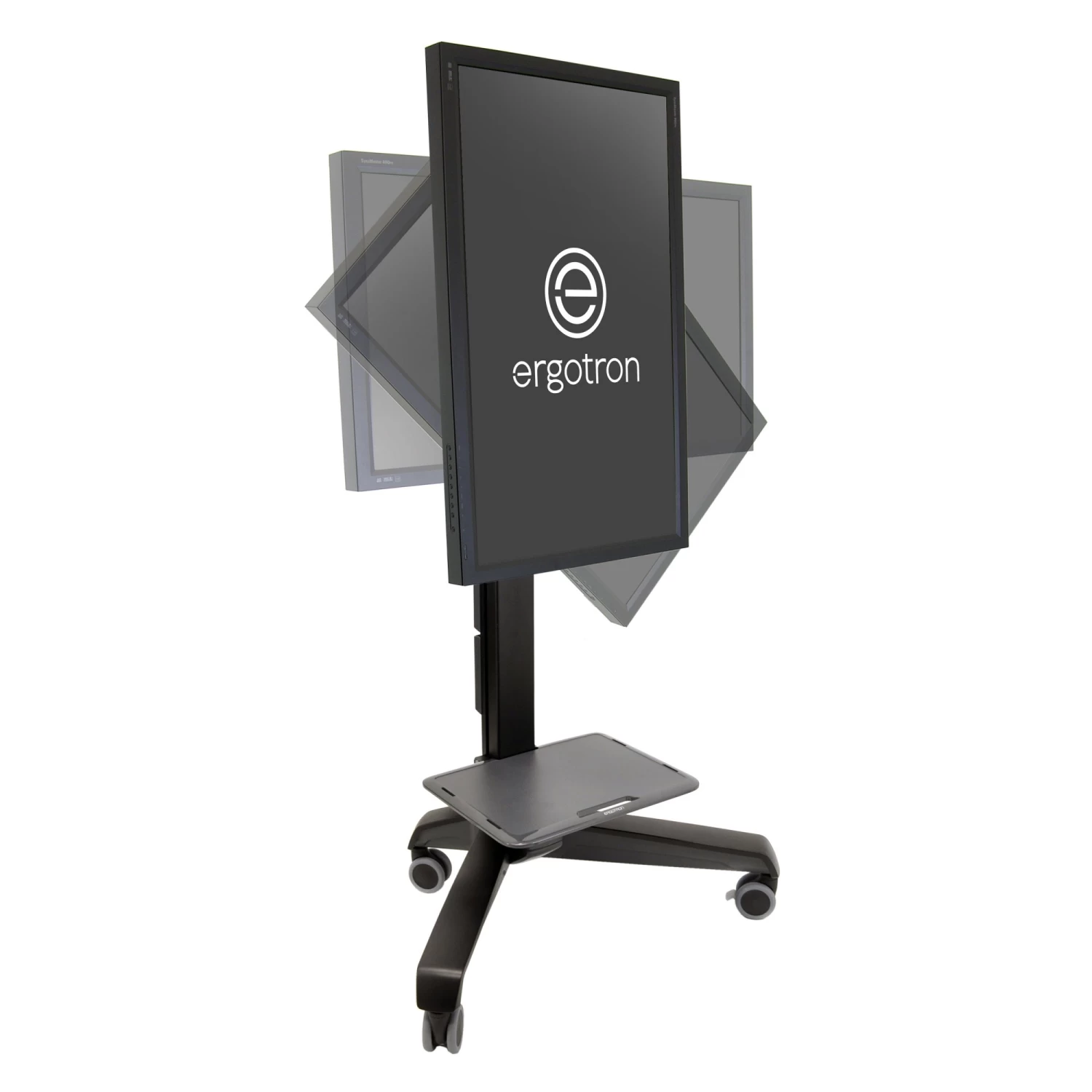

Rotate your display to portrait or landscape orientation – no
need to reinstall display -

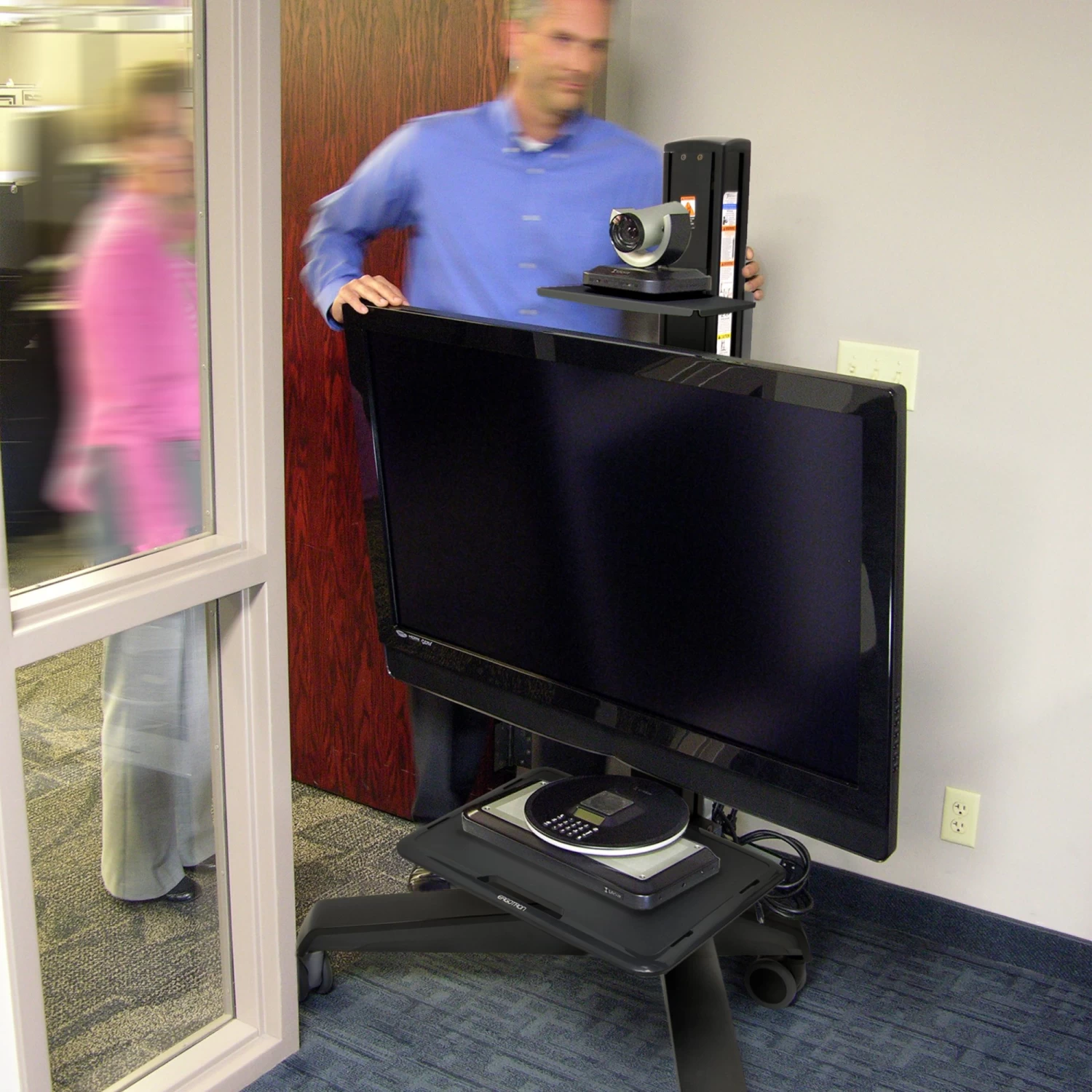

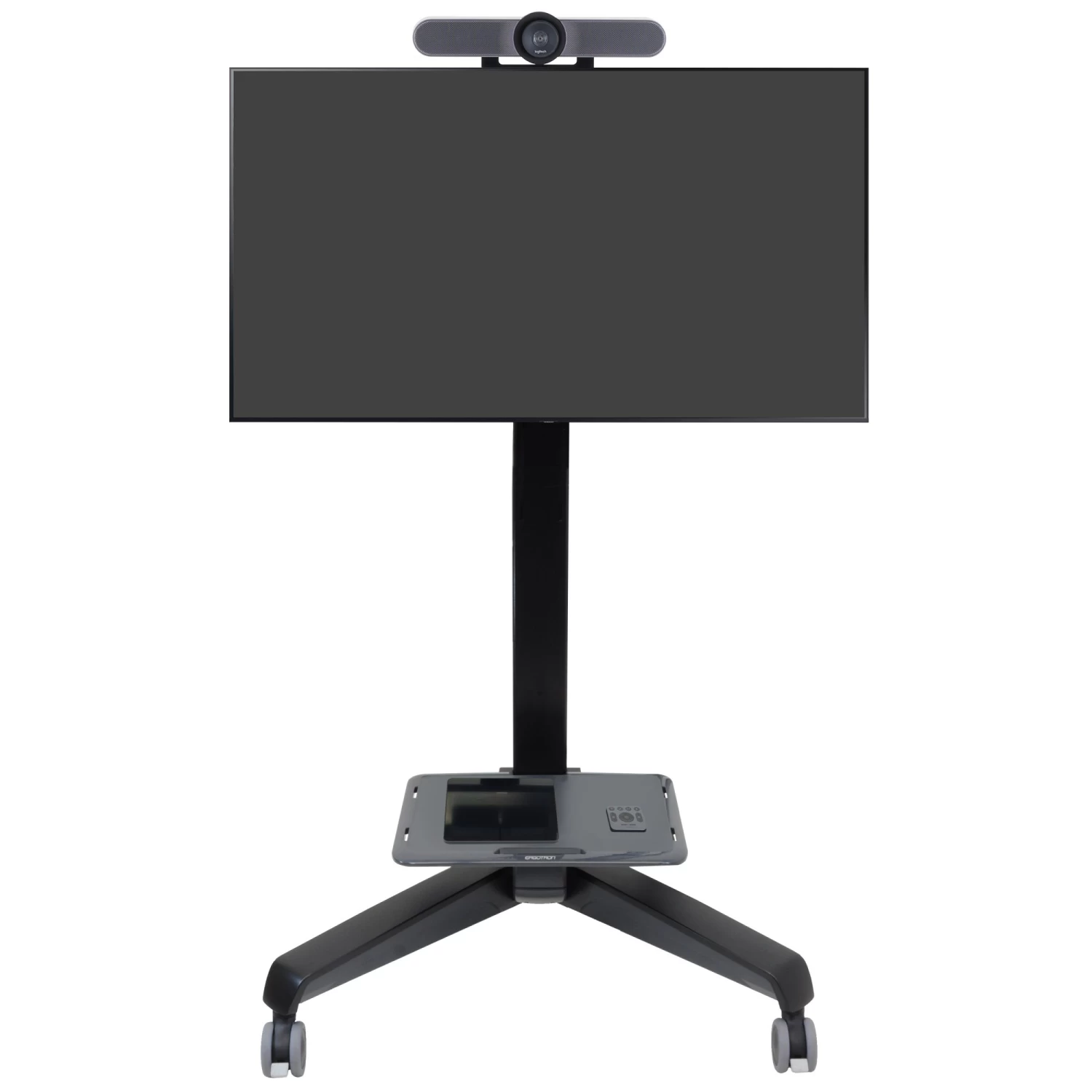

Optional camera shelf accessory converts any space into a
videoconference center -
Easily roll cart through standard-size doorways and over
thresholds -
Narrow footprint allows presenter to move closer to the
display; easily tucks into corners or nests with other carts for
space-saving storage -
Constant Force technology enables smooth, effortless
portrait-to-landscape rotation, tilt and height adjustment. Adjusts
with just a touch – no knobs or levers -

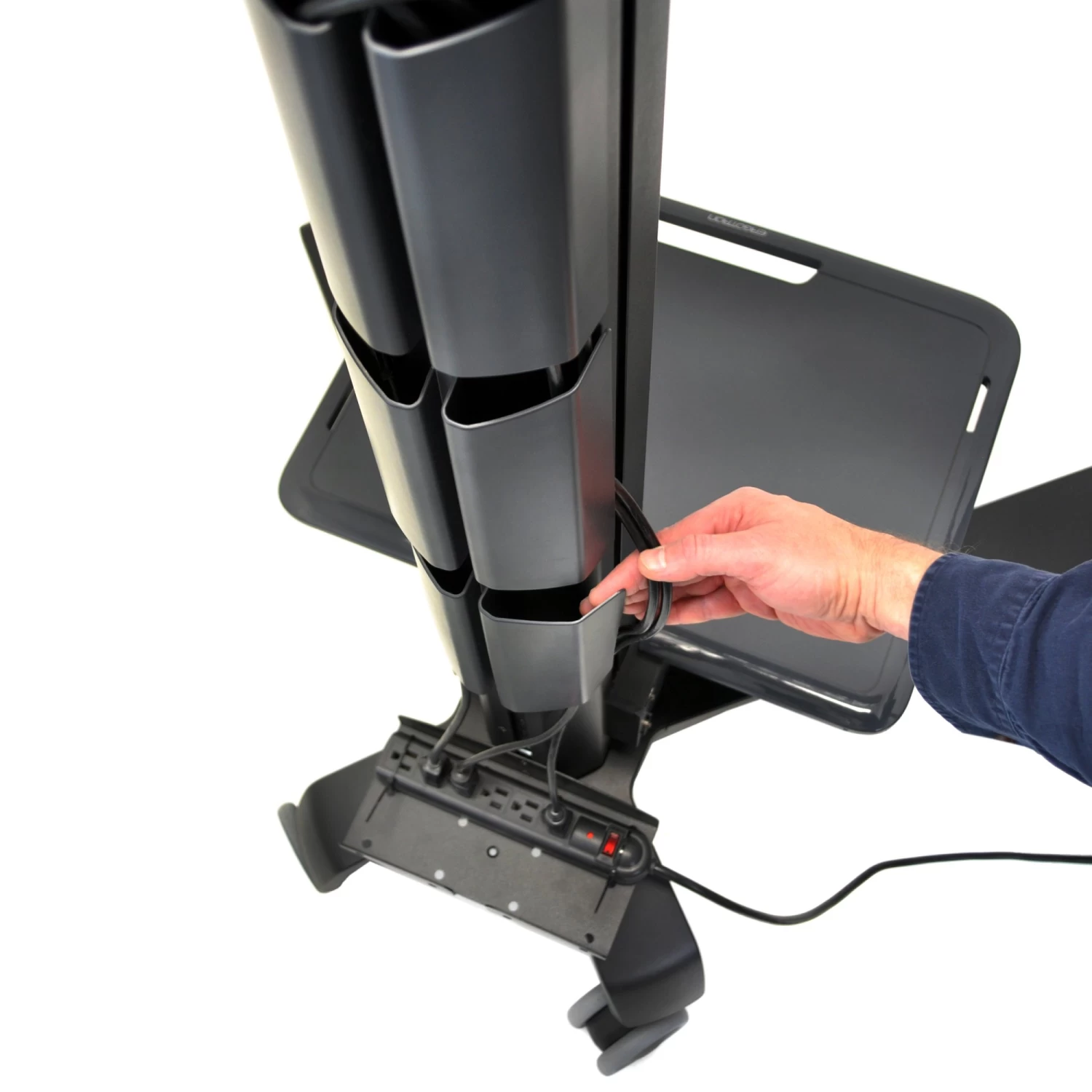

Modular cable management channels conceal and organize cables
-
Maximize your technology investment by sharing a large
display over multiple rooms -
Second-generation design and 47 separate quality tests ensure
reliability and optimum performance -
Speedy assembly and installation
| Model | 24-190-085 |
| Manufacturer | Ergotron |
| Part Number | 24-190-085 |
| UPC | 698833016130 |
| Color | Black |
| Monitor Size | 27″–55″ |
| Weight Capacity | Display=25–50 lbs (11.4–22.7 kg); maxi display weight will be diminished if deploying display with smaller hole patter. Main shelf=30 lbs (13.6 kg); cable shelf =5 lbs; if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 3 lbs |
| Lift | (51 cm) 20 in |
| Tilt | 20 degree |
| Rotation | (P/L) 90 degree |
| Mounting Pattern | Horizontal measurement = 100 mm, 200 mm, 300 mm, 400 mm, 500 mm or 600 mm. Vertical measurement = 100mm, 200 mm or 225 mm to 400 mm. Also accommodates MIS-D 75 x 75 mm hole pattern (weight capacity is limited to 36 lbs/16 kg with this hole pattern) |
| CPU Dimension | Compatible with CPU sizes from 12″ H x 3″ D to 18″ H x 8.5″ D (300 x 80 mm to 460 x 220 mm) |
| Shipping Dimensions | 66″L x 20″H x 14″D (1680 x 503 x 335 mm) |
| Shipping Weight | 101 lbs (46 kg) |
| Warranty | Three (3) years |
| Product Type | TV |
