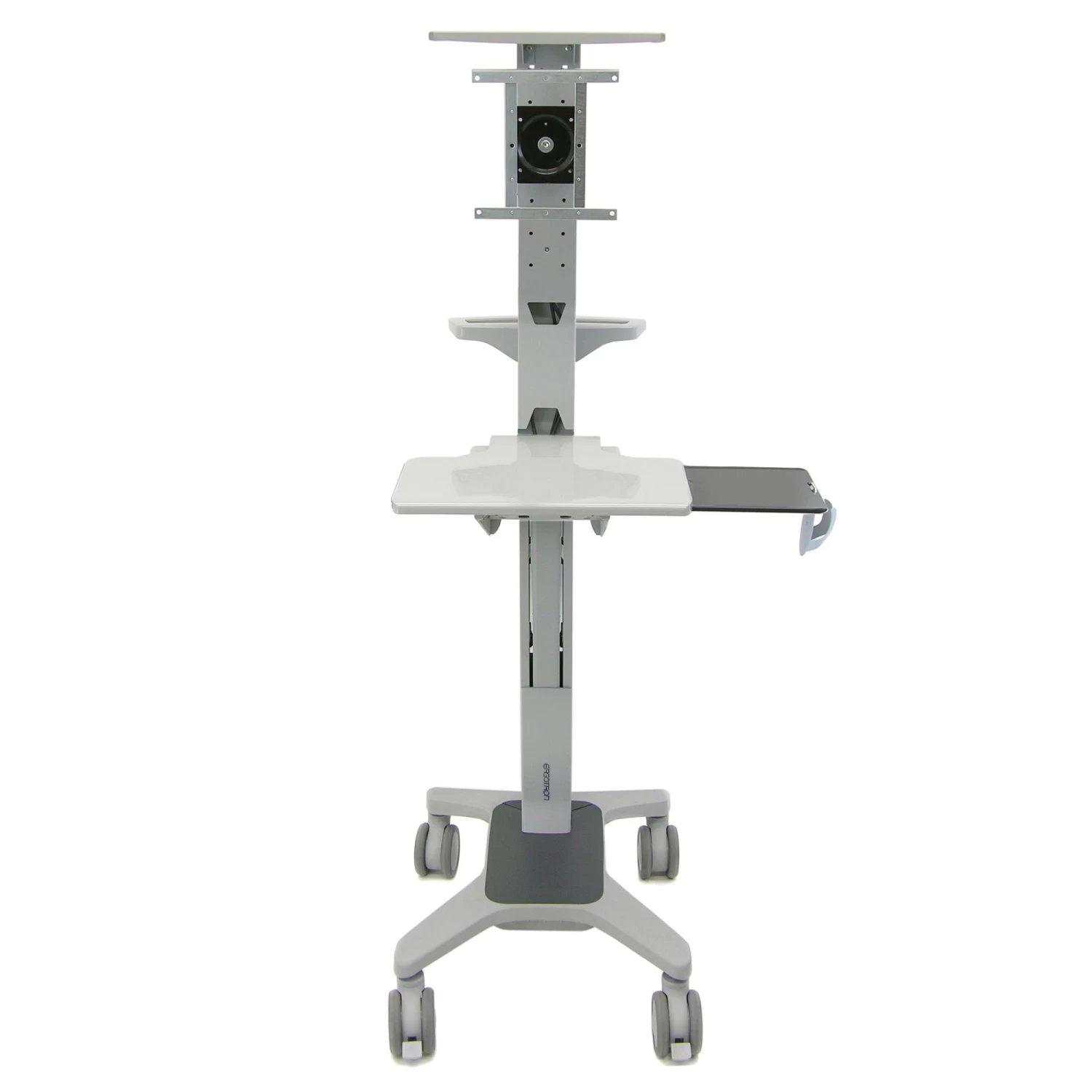

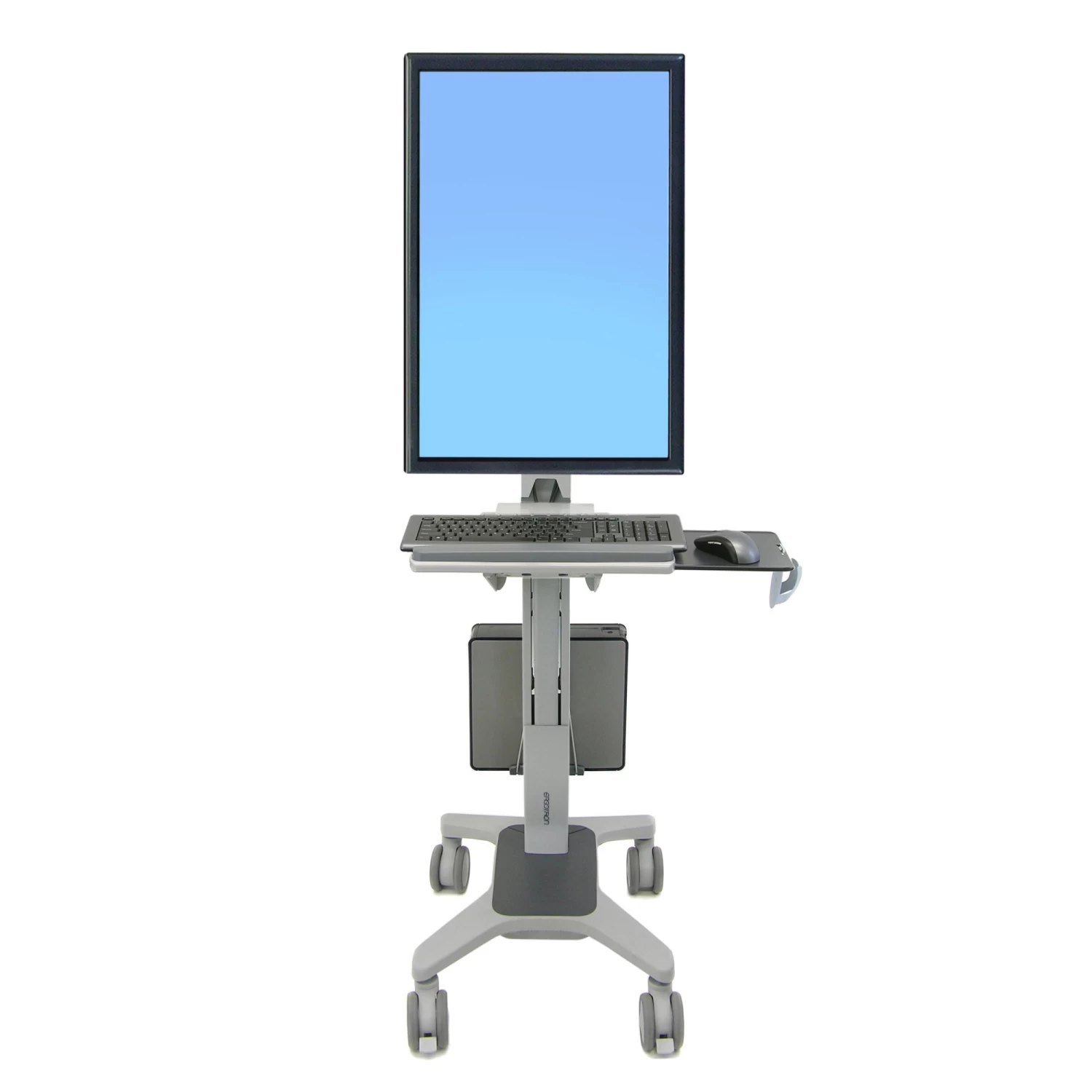

Widen your view and move it too. Configure this compact,
height-adjustable computer cart to your needs: Flexible open
architecture supports a wide range of displays and a fleet of

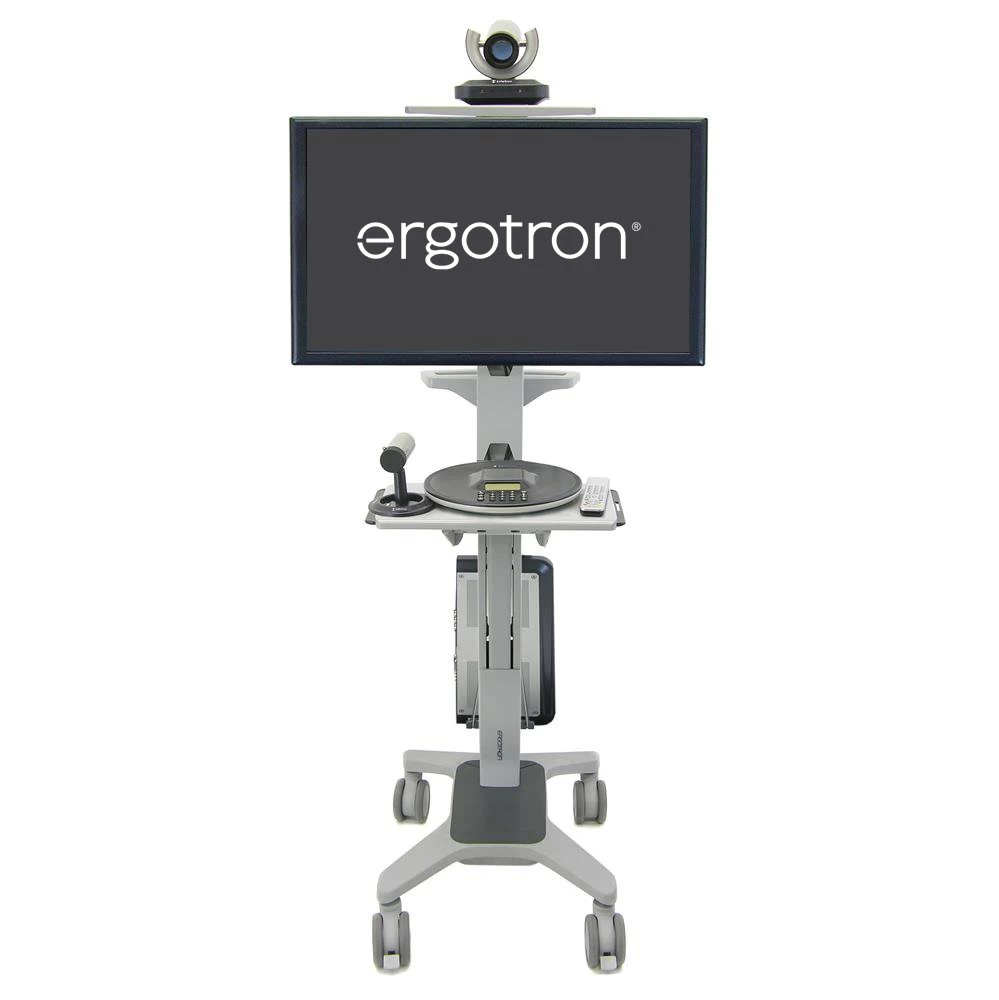

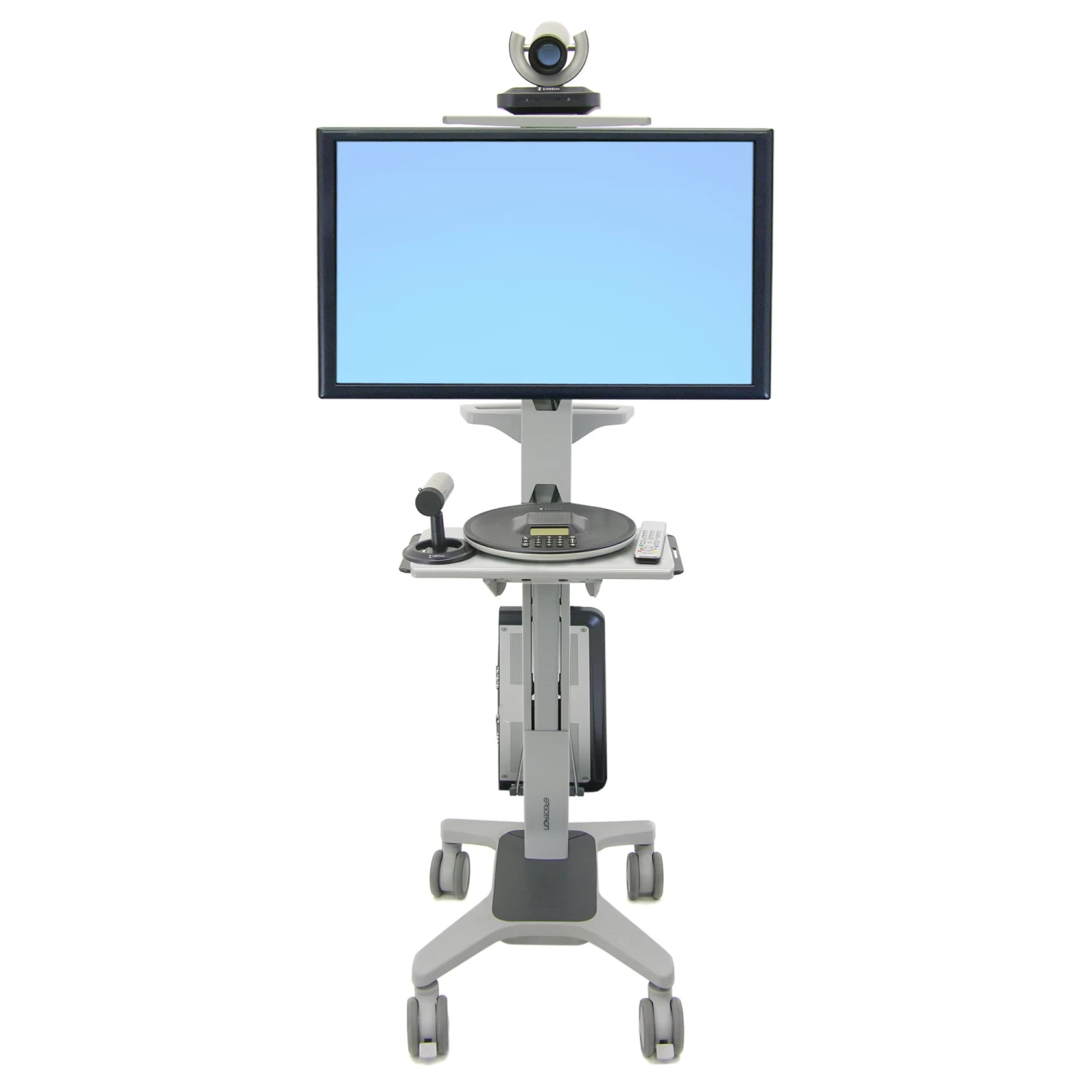

accessories. With the optional separately ordered Camera Shelf
accessory, it’s perfect for web conferencing or other image-intensive
applications like telemedicine.

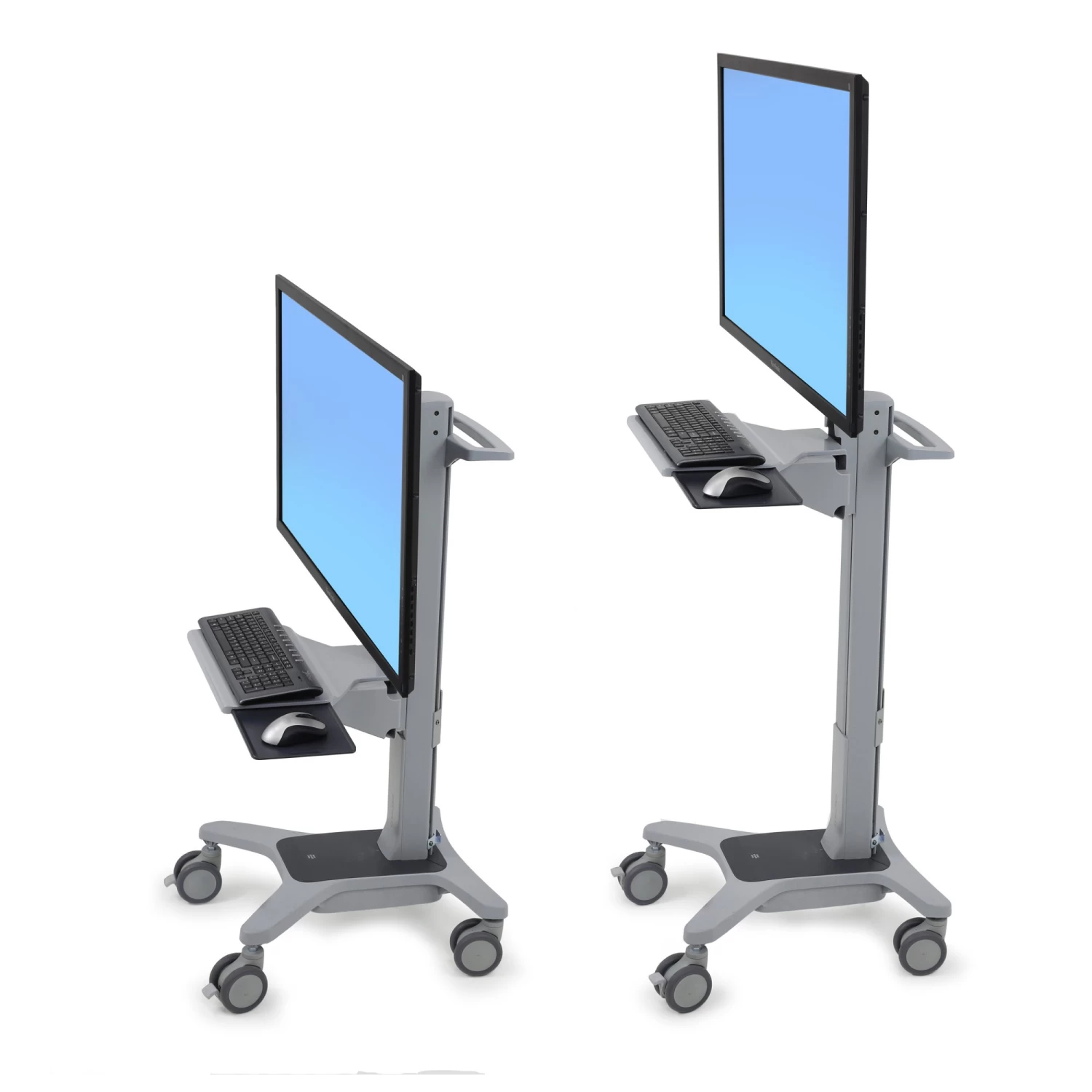

Features include 20″ (51 cm) height adjustment (work sitting or
standing), small footprint and advanced cable management.
Technical Drawing
Technical Specifications
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42″ | 16-50 lbs 7.3-22.7 kg | 20″ 50.8 cm | 30° | – | 90° | MIS-D/E/F |
Product Information
| Part Number | 24-189-055 |
| Neo-Flex WideView WorkSpace Cart (two-tone grey) | |
| Includes |
|
| Weight Capacity | Total load on height-adjustment assembly = 50 lbs (22 kg). Includes contents of Worksurface, Cable Storage Box and LCD Pivot. LCD pivot capacity = 16–30 lbs (7.3–13.6 kg) |
| Mounting Standards | VESA FDMI, MIS-D, 75/100 (hole patterns = 100 x 100 mm and 75 x 75 mm); VESA FDMI, MIS-E (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F (hole pattern = 200 x 200 mm). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for display interface that uses a VESA hole pattern up to 400 x 400 mm |
| Displays | Can be mounted on cart in 5 different height positions |
| CPUs | Attach safely to rear of cart with CPU Holder: Adjusts from 12″H x 3″D to 18″H x 8.5″D (30 x 8 cm to 46 x 22 cm) |
| CPU Holder Capacity | 40 lbs (18 kg) |
| Cable Storage Box and Space | Cable Storage Box and space within the center column can conceal and route cords, wiring and power bricks |
| Barcode Scanner Holder | Barcode scanner holder provides easy access to hand-held scanner |
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel |
| Worksurface Dimensions | 16.5″W x 14″D (42 x 36 cm) |
| Worksurface | Includes concealed mouse tray that slides out on left or right |
| Wheel-to-Wheel Base Dimensions | 17″ W x 20.5″ D (43 x 52 cm) |
| Shipping Dimensions | 45.5″ H x 19.75″ W x 24″ D (1156 x 502 x 610 mm) |
| Shipping Weight | 82 lbs (37 kg) |
| Warranty | Three (3) years |
Benefits
-
Flexible, open-architecture design is scalable for future
videoconferencing or computer equipment. Use a laptop or CPU; features
a fleet of accessories to meet individualized computing needs -
Easily moves through small doorways and over thresholds
-

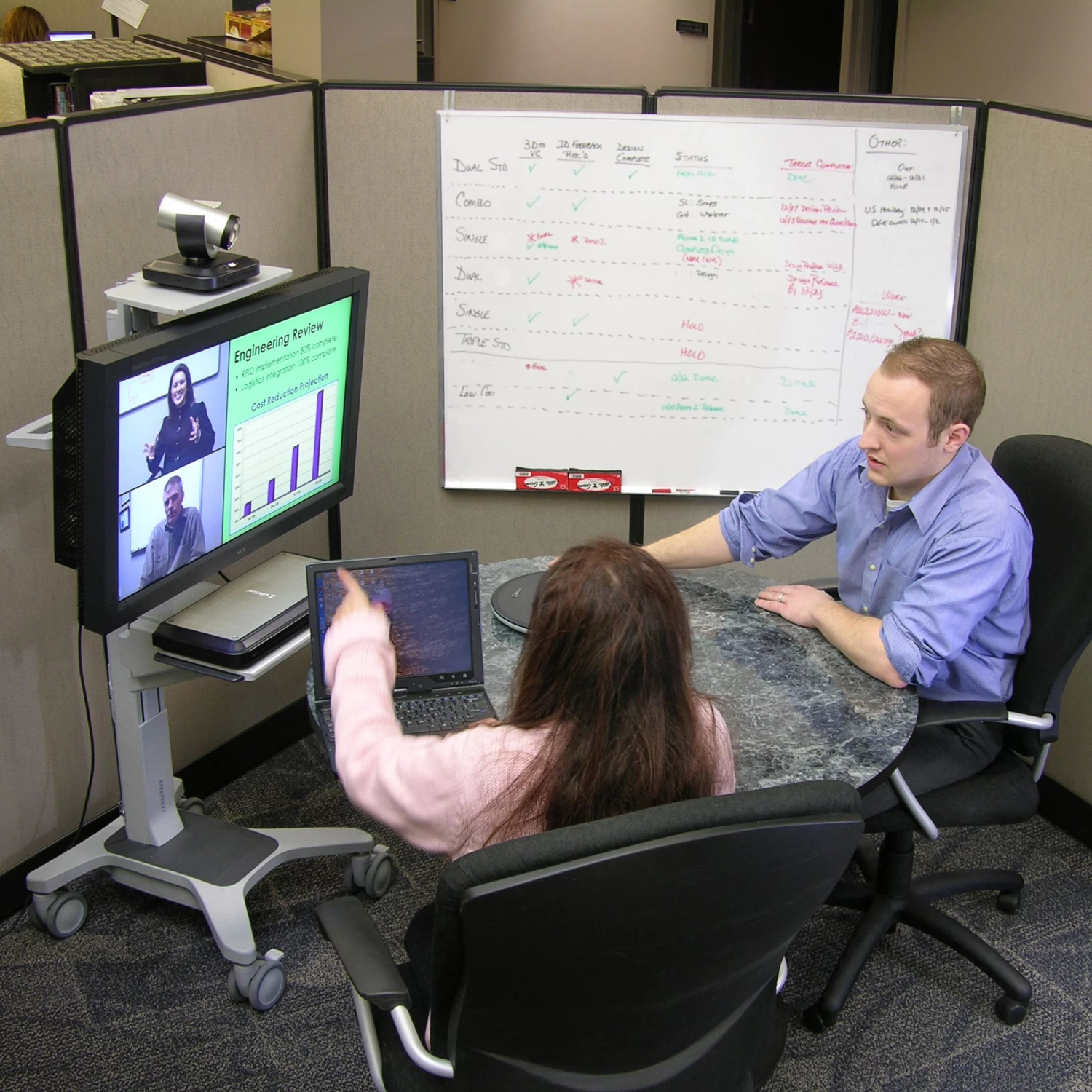

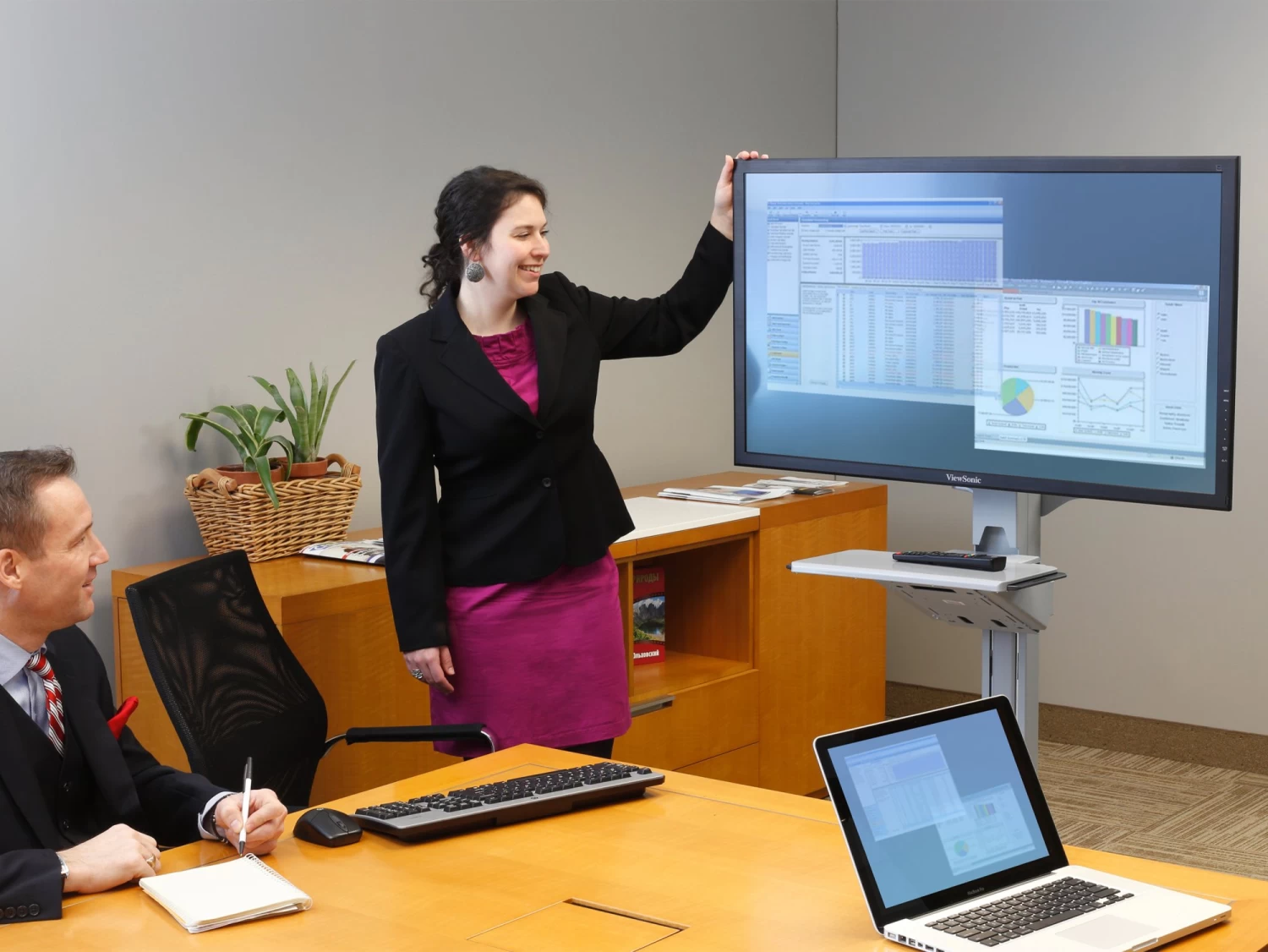

Use inside an office cubicle or small meeting space; compact
design offers personalized video or computing -
Work sitting or standing with ergonomic 20″ (51 cm)
height-adjustment range -
Patented Constant Force lift technology provides fluid, one-touch
height adjustment -
Safe and neat routing of cables through the expansive cable
management storage areas
| Model | 24-189-055 |
| Manufacturer | Ergotron |
| Part Number | 24-189-055 |
| UPC | 698833009606 |
| Color | Two-tone grey |
| Monitor Size | Up to 42″ |
| Weight Capacity | Total load on height-adjustment assembly = 50 lbs (22 kg). Includes contents of Worksurface, Cable Storage Box and LCD Pivot. LCD pivot capacity = 16–30 lbs (7.3–13.6 kg). |
| Lift | (50.8 cm) 20 in |
| Tilt | 30 degree |
| Rotation | 90 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100 (hole patterns = 100 x 100 mm and 75 x 75 mm); VESA FDMI, MIS-E (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F (hole pattern = 200 x 200 mm). |
| CPU Dimension | CPUs attach safely to rear of cart with CPU Holder. Adjusts from 12″H x 3″D to 18″H x 8.5″D (30 x 8 cm to 46 x 22 cm). |
| CPU Holder Capacity | 40 lbs (18 kg) |
| Worksurface Dimensions | 16.5″W x 14″D (42 x 36 cm) |
| Compact Wheel to Wheel Base Dimensions | 17″W x 20.5″D (43 x 52 cm) |
| Shipping Dimensions | 45.5″H x 19.75″W x 24″D (1156 x 502 x 610 mm) |
| Shipping Weight | 82 lbs (37 kg) |
| Warranty | Three (3) years |
| Mounting Options | Cart |
| Product Type | LCD Monitor |
