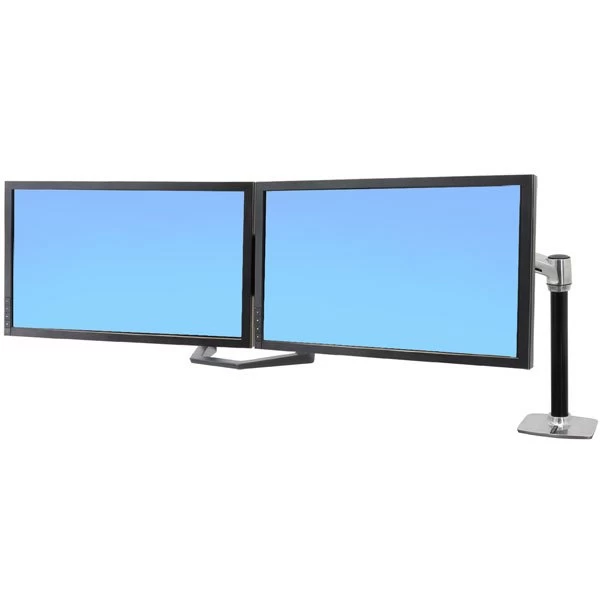

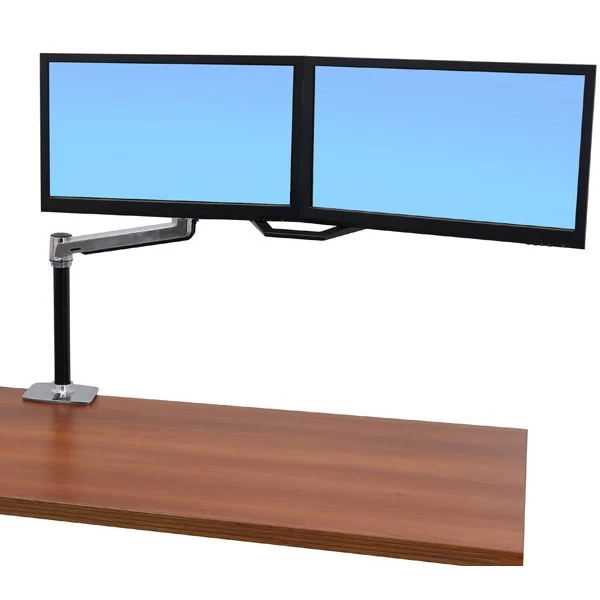

ErgoDirect Dual Monitor Sit-Stand Workstation, EDM-2201D

Based on the LX HD Sit-Stand Desk Mount LCD Arm, we have developed a value added solution for you – A Dual Monitor Sit-Stand Workstation.  An integrated handle makes screen positioning
easy throughout the arm’s unparalleled range of motion: full sit-to-stand
height adjustment, 360° side-to-side rotation and 33″ (84 cm) extension/retraction
motion. Just add an underdesk keyboard arm for customized functionality.

Formerly known as ED-LX2S Sit Stand Workstation.

Technical Drawing







Technical Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
Up to 24″	8-24 lbs 3.6-10.9 kg	20″ 51 cm	80°	360°	–	MIS-D



Product Information

Outside Width of Monitor	Outside width of monitor should be 14″ to 24.5″ (35 to 62 cm). This range accommodates most 17″ to 24″ displays as well as some displays as large as 26″. If the outside width is less than 14″ (35 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5″ (62 cm) are not compatible
Weight Capacity	8–24 lbs (3.6–10.9 kg) total; 4–12 lbs (1.8–5.5 kg) per monitor. Recommended: Monitors should be equal in weight or +/-1 pound (.45 kg)
Monitors Tilt	In tandem 75° up and 5° down
Rotation	Portrait/landscape rotation must be locked out on LX Arm when Dual Kit’s bow is attached to arm’s VESA interface plate. Monitor brackets attached to Dual Kit’s bow offer 360° rotation for each monitor
Mounting Standards	VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Keyboard Arm	To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused
Warranty	Ten (10) years



Benefits

• Perfect dual-mounting solution for monitors with screen sizes of 17″ to 24″

• 20-inch (51 cm) height range allows users to move between sitting and standing
  positions while they interact with the display

• 62 inches (157 cm) of side-to-side motion

• Attaches to wide variety of mounts using a 50 x 50 mm or 100 x 100 mm hole pattern

• Robust design ensures many years of service

• Conceal and organize cables: Display cables can be neatly routed behind displays

• Extends LCD up to 33″ (84 cm); push your display out of the way when not in use

• Increase viewing comfort – help reduce eye, back and neck strain

• Upgrade LCD monitors and TVs with improved ergonomic adjustment

• Patented CF motion technology provides premium ease-of-use adjustment

• Cable management clips on the under side of the arm route and hide cords

• Ideal for space-constrained spaces – folds to within 4.5″ (12 cm) of back of
  desk in storage position

• Secure installation – locking connections between arm, extension and base

• Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five
  years trouble-free height adjustment
