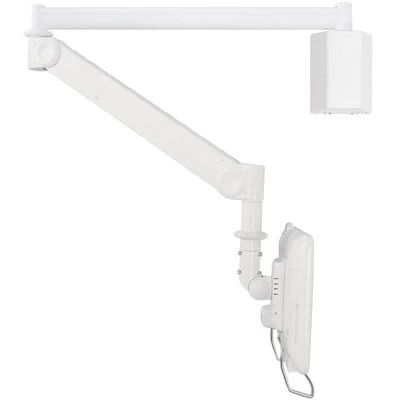

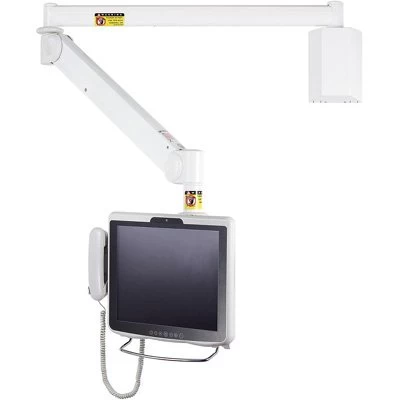

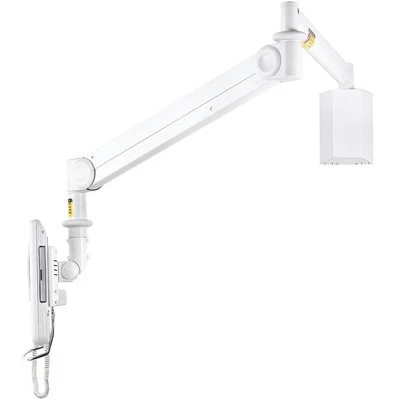

Cotytech MW-M123PN Long Reach Wall Mount Medical Arm



Our new Long Reach LCD Monitor Arm MW-M123PN features built-in gas pneumatic
spring design for easy and smooth movements, allowing instant floating of LCD
monitor from position to position. This LCD wall mount provides maximum of 72″
(182.5cm) straight extension. The articulating arm is a perfect solution if you
need to float your LCD monitor around or above settings like workstation,
manufacturing equipment, assembly line etc.

The wall mount solution can be rotated 370° at arm, 370° at monitor end and 180°
at the wall connection for optimal viewing angles. When not in use, the unit can
be folded up and out of the way, an excellent space-saving feature for any room.
Handle design facilitates easy operation and movement. This simple and
contemporary looking durable arm is made of aluminum alloy with plastic cover
outside. It’s ergonomic, space saving attributes and contemporary look make the
LCD wall mount a practical choice in businesses, office, doctors’ office,
clinics, dental operatories, hospitals and factories.



Technical Drawing





Specifications

Part Number	MW-M123PN
Weight Capacity	Supports 2.2 – 13.2 lb (1 – 6 kg)
Tilt	15°/- 40° (display) and 20°/- 60° (arm)
Maximum Extension	72″ (182.5cm)
Rotation	370° (arm); 370° (display); 180° (wall)
Mounting Pattern	VESA compliant: 75×75 to 100×100
Color	White





Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing
page of your owner’s manual. Otherwise you can simply measure from the center of
one hole to the center of the next (both vertical and horizontal). Please
remember to measure in millimeters. Feel free to contact us if the mounting
pattern of your LCD is different and we are very glad to help you out!



Comparison Chart



Model	Ceiling	Wall	Weight Capacity	Keyboard Holder	Monitor Back Cable Cover	Wall Box
MW-M123PN	–	Yes	13.2 lbs	Optional	Yes	–
MW-M23PKN	–	Yes	13.2 lbs	Yes	Yes	–
MW-M123WBN	–	Yes	13.2 lbs	Optional	Yes	Yes
MW-M23WBKN	–	Yes	13.2 lbs	Yes	Yes	Yes
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	–
MW-M25PKN	–	Yes	26.4 lbs	Yes	Yes	–
MW-M125WBN	–	Yes	26.4 lbs	–	Yes	Yes
MW-M25WBKN	–	Yes	26.4 lbs	Yes	Yes	Yes
MW-M16P	–	Yes	15.4 lbs	Optional	Yes	–
CM-M123N	Yes	–	13.2 lbs	Optional	Yes	N/A
CM-M23KN	Yes	–	13.2 lbs	Yes	Yes	N/A
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	N/A
CM-M25KN	Yes	–	26.4 lbs	Yes	Yes	N/A
MW-M25WB	–	Yes	26.4 lbs	Optional	Yes	Yes
MW-M25WBK	–	Yes	26.4 lbs	Yes	Yes	Yes
