Cotytech DM-GSDA Dual Apple Desk Mount Spring Arm



Cotytech DM-GSDA Dual Apple Desk Mount Spring Arm – Silver DM-GSDA is a stylish
desk mount that is perfect for your Apple LCD monitor. With a 180° swivel
function and a weight capacity of 30.8lbs (14kg), this desk mount is ideal for
offices, classrooms, private homes and public areas. It’s the perfect accessory
for the busy individual; and can fit neatly into any home office space. This
desk mount has +90° / -45° tilt actions to ensure perfect viewing at any angle.
The convenient desk arm features robust cable management; ensuring a neat and
tidy desk space with no visible cables.

This convenient and stylish LCD desktop mount offers perfect flexibility and is
maneuverable to suit any viewing angle. It has a modern look; which fit in
perfectly with Apple’s stylish looks. The monitor mount has been designed with
the latest engineering technologies in mind; to ensure durability and strength.
These quality mounts are manufactured in our offshore manufacturing plant;
adhering to strict quality guidelines that enable us to deliver value to our
customers. This handy Cotytech monitor mount has been manufactured with the
end-user in mind; and ensures easy installation features while simultaneously
offering intuitive, practical and functional designs.

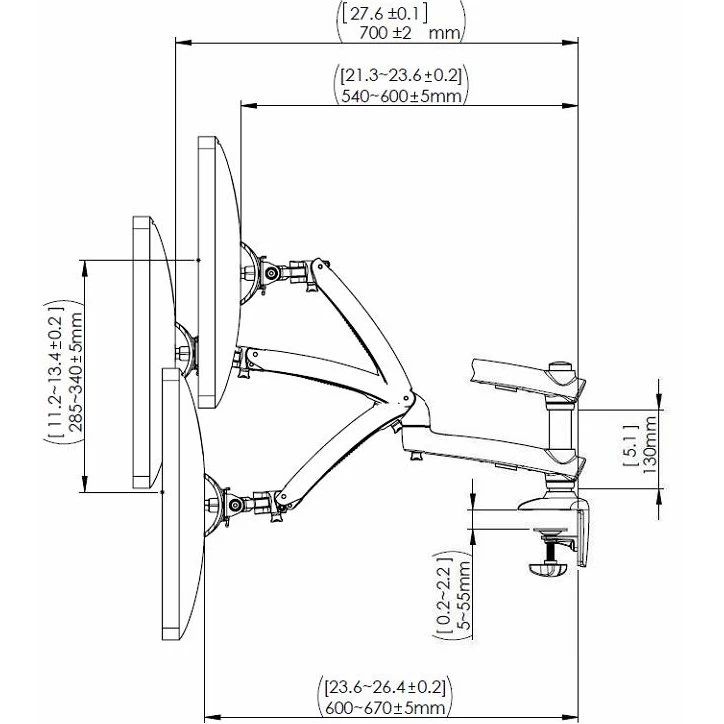

Technical Drawing



Specifications

Weight Capacity	Supports 17.6 – 30.8lbs (8 – 14kgs) for each monitor
Tilt	+90° / -45°
Rotation	360°
Swivel	Max 180°
Mounting Pattern	VESA compliant: 75×75 and 100×100
Maximum Extension	27.6″ (700mm)



Features

• Designed for the following Apple Monitors:
  24-inch iMac (aluminum and glass)
  27-inch iMac
  24-inch LED Cinema Display
  27-inch LED Cinema Display
  27-inch Thunderbolt Display
  21.5″ or 27″ iMac with Built-in VESA Mount Adapter early 2013 please be sure
  to choose the option of ‘iMac Early 2013’
  If your Apple monitor is not listed above, please contact us for solutions.

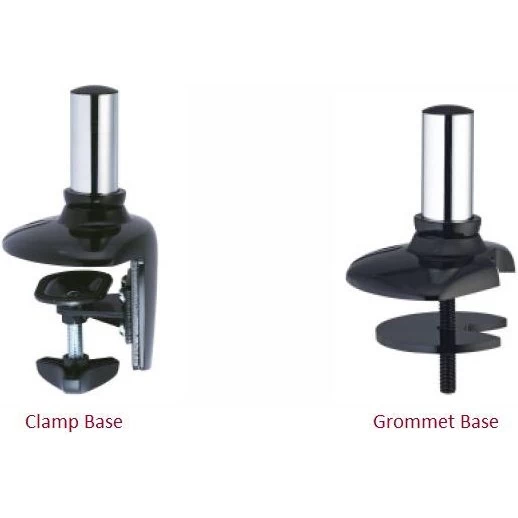

• Desk-mountable, for two screens placed next to each other; available in clamp base and grommet base
• Clamp table thickness: 0.2″-2.21″ (5-55mm); Grommet table thickness: 0.2″-2.21″ (5-55mm), Hole Diameter: 0.39″-1.97″ (10-50mm)
• Spring arm design makes extension, retraction and height adjustments dynamically and easily
• Pole length: 7.87″ (200mm); Longer pole option available
• Maximum adjustment rendered by tilting, swiveling, rotation and dynamic height adjustment
• Swift and easy movements and adjustments
• Height Adjustment Range: 5.1″ at 7.87″ pole (16.95″ at 19.7″ pole), 11.2″ – 13.4″ at monitor
• Solid Aluminum die-cast construction
• Space saving with its compact design
• Smooth extension (up to 27.6″) to achieve ideal viewing angles
• Clean look with minimal hardware visible from underside of work surface
• Rotation 360° and side-to-side pivot
• Neat and efficient cable management
• Maximum productivity and supreme ergonomic comfort
• Easy installation and dis-installation
• Color: Metallic Silver (please contact us for special order of white, dark gray or red color)
