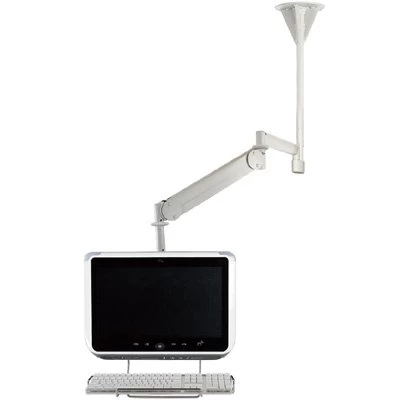

Cotytech CM-M23KN Long Reach LCD Ceiling Mount Medical Arm



Our new Long Reach LCD Ceiling Mount CM-M23KN features built-in gas pneumatic
spring design for easy and smooth movements, allowing instant floating of LCD
monitor from position to position. This LCD ceiling mounting bracket provides
maximum of 72″ (182.5cm) straight extension. The articulating arm is a perfect
solution if you need to float your LCD monitor around or above settings like
workstation, manufacturing equipment, assembly line etc.

The LCD ceiling mount solution can be rotated 270° and 370° at arms, 370° at
monitor end for optimal viewing angles. When not in use, the unit can be folded
up and out of the way, an excellent space-saving feature for any room. Handle
design facilitates easy operation and movement. This simple and contemporary
looking durable arm is made of aluminum alloy with plastic cover outside. It’s
ergonomic, space saving attributes and contemporary look make the ceiling VESA
mount a practical choice in businesses, office, doctors’ office, clinics, dental
operatories, hospitals and factories. Please note that monitor is not included.



Specifications

Part Number	CM-M23KN
Weight Capacity	Supports 2.2 – 13.2 lb (1 – 6 kg)
Tilt	15°/- 40° (display) and 20°/- 60° (arm)
Maximum Extension	72″ (182.5cm)
Rotation	270° & 370° (arms); 370° (display)
Mounting Pattern	VESA compliant: 75×75 to 100×100
Color	White



Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of
your LCD is different and we are very glad to help you out!



Comparison Chart



Model	Ceiling	Wall	Weight Capacity	Keyboard Holder	Monitor Back Cable Cover	Wall Box
MW-M123PN	–	Yes	13.2 lbs	Optional	Yes	–
MW-M23PKN	–	Yes	13.2 lbs	Yes	Yes	–
MW-M123WBN	–	Yes	13.2 lbs	Optional	Yes	Yes
MW-M23WBKN	–	Yes	13.2 lbs	Yes	Yes	Yes
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	–
MW-M25PKN	–	Yes	26.4 lbs	Yes	Yes	–
MW-M125WBN	–	Yes	26.4 lbs	–	Yes	Yes
MW-M25WBKN	–	Yes	26.4 lbs	Yes	Yes	Yes
MW-M16P	–	Yes	15.4 lbs	Optional	Yes	–
CM-M123N	Yes	–	13.2 lbs	Optional	Yes	N/A
CM-M23KN	Yes	–	13.2 lbs	Yes	Yes	N/A
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	N/A
CM-M25KN	Yes	–	26.4 lbs	Yes	Yes	N/A
MW-M25WB	–	Yes	26.4 lbs	Optional	Yes	Yes
MW-M25WBK	–	Yes	26.4 lbs	Yes	Yes	Yes
