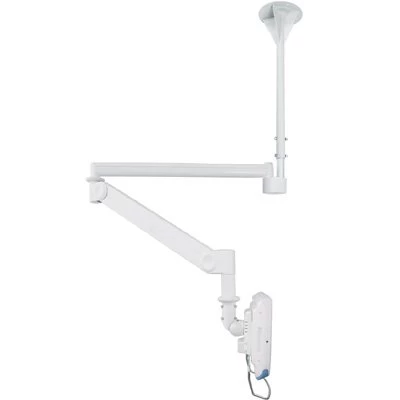

Cotytech CM-M123N Long Reach Medical Arm Ceiling Mount



Our new Long Reach LCD Ceiling Mount CM-M123N features built-in gas pneumatic
spring design for easy and smooth movements, allowing instant floating of LCD
monitor from position to position. This LCD ceiling mount provides maximum of
72″ (182.5cm) straight extension. The articulating arm is a perfect solution if
you need to float your LCD monitor around or above settings like workstation,
manufacturing equipment, assembly line etc.

The ceiling mount solution can be rotated 270° & 370° at arms, 370° at monitor
end. When not in use, the unit can be folded up and out of the way, an excellent
space-saving feature for any room. Concealed cable management not only makes the
whole unit more neat looking but also enhances secure performance. This simple
and contemporary looking durable arm is made of aluminum alloy with plastic
cover outside. It’s ergonomic, space saving attributes and contemporary look
make the LCD wall mount a practical choice in businesses, office, doctors’
office, clinics, dental operatories, hospitals and factories. Please note that
monitor is not included.



Technical Drawing





Specifications

Part Number	CM-M123N
Weight Capacity	Supports 2.2 – 13.2 lb (1 – 6 kg)
Tilt	15°/- 40° (display) and 20°/- 60° (arm)
Maximum Extension	72″ (182.5cm)
Rotation	270° & 370° (arms); 370° (display)
Mounting Pattern	VESA compliant: 75×75 to 100×100
Color	White





Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing
page of your owner’s manual. Otherwise you can simply measure from the center of
one hole to the center of the next (both vertical and horizontal). Please
remember to measure in millimeters. Feel free to contact us if the mounting
pattern of
your LCD is different and we are very glad to help you out!



Comparison Chart



Model	Ceiling	Wall	Weight Capacity	Keyboard Holder	Monitor Back Cable Cover	Wall Box
MW-M123PN	–	Yes	13.2 lbs	Optional	Yes	–
MW-M23PKN	–	Yes	13.2 lbs	Yes	Yes	–
MW-M123WBN	–	Yes	13.2 lbs	Optional	Yes	Yes
MW-M23WBKN	–	Yes	13.2 lbs	Yes	Yes	Yes
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	–
MW-M25PKN	–	Yes	26.4 lbs	Yes	Yes	–
MW-M125WBN	–	Yes	26.4 lbs	–	Yes	Yes
MW-M25WBKN	–	Yes	26.4 lbs	Yes	Yes	Yes
MW-M16P	–	Yes	15.4 lbs	Optional	Yes	–
CM-M123N	Yes	–	13.2 lbs	Optional	Yes	N/A
CM-M23KN	Yes	–	13.2 lbs	Yes	Yes	N/A
MW-M125PN	–	Yes	26.4 lbs	Optional	Yes	N/A
CM-M25KN	Yes	–	26.4 lbs	Yes	Yes	N/A
MW-M25WB	–	Yes	26.4 lbs	Optional	Yes	Yes
MW-M25WBK	–	Yes	26.4 lbs	Yes	Yes	Yes
