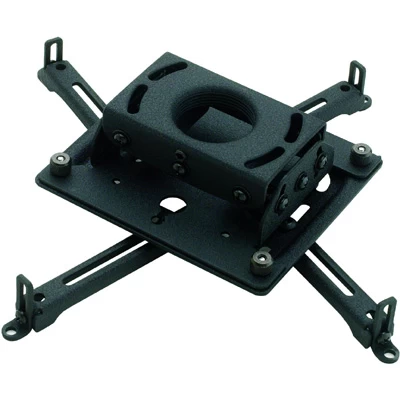

Chief RPAU Or RPAUS Or RPAUW Universal Ceiling Projector Mount

Related Products

Part Number
RPAU	Black Universal Projector Ceiling Mount
RPAUS	Silver Universal Projector Ceiling Mount
RPAUW	White Universal Projector Ceiling Mount



Chief RPAU has all of the great features of the RPAO and even more. This
Universal Projector Mount is coupled with the newly designed SLBU Universal
Interface Bracket. This 2nd Generation Interface Technology has enhanced
security and unlimited projector access.



Technical Drawing



Specifications

Adjustments	Roll: 4° Pitch: 25° Yaw: 360°
Certifications	UL Listed
Color	Black, Silver and White
Overall Dimensions (H x W x D)	1.8″ x 6.5″ x 5.5″ (44 x 165 x 140 mm)
Shipping Weight	5.75 lbs
Solution Type	Universal
Weight Capacity	50 lbs (22.7 kg)



Features

• Ships newly designed SLB universal bracket to fit most inverted projectors on the market
• Independent roll, pitch and yaw for quick and precise projector image registration
• Quick projector connect and disconnect with convenient lamp and filter access on most projectors
• Maintains registration when disconnected and doesn’t affect preset adjustment
• All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
• Multiple installation options: flush mount to ceiling, 0.25″ threaded rod, or 1.5″ NPT threaded extension column
• Integrated cable management through top of mount without additional accessories
