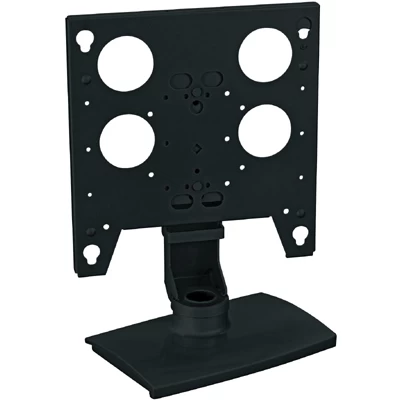

Chief PSSUB Large Flat Panel Swivel Table Stand – Black

Chief PSSUB provides a wide variety of features for most tabletop installations
of large flat panel TVs.

• Stylish solution for residential, commercial and business applications

• View/download base stand template by clicking on the CAD drawing in the
  downloads tab



Technical Drawing



Specifications

Color	Black
Manual Height Adjustment	6.5″
Mounting Method	Free Standing and Bolt-down
Mounting Pattern Compatibility (Universal Versions)	200 x 200mm – 862 x 517mm
Orientation	Landscape
Overall Dimensions (H x W x D)	20.7″ x 16.3″ x 9.3″ (526 x 413 x 236mm)
Pivot (numerical value)	Yes, up to 45° in either direction with optional stops at 15°, 25° and 35°
Post-Installation Leveling (Roll)	Yes
Shipping Weight	43.00 lbs
Solution Type	Universal
TV Height Range	15 – 32″ (381 – 813mm)
Typical Screen Sizes	32 – 50″
Weight Capacity	150 lbs (68.kg)



Features

• Smooth swivel with optional stops
• Exclusive ClickConnect mounting system provides simplified tool-less latching with an audible click
• Free standing with bolt down capability for permanent installations or security
• Infinite height adjustment of 5″ (127 mm) to allow for different screen heights up to 32″ (81.28 cm)
• Two cable management options for ease of installation
• Smooth finger-tip swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
• PSSUB universal version available which includes universal PSBUB interface. PSS2000B is available but must order PSS2000B and PSBXXXX custom or universal interface separately
