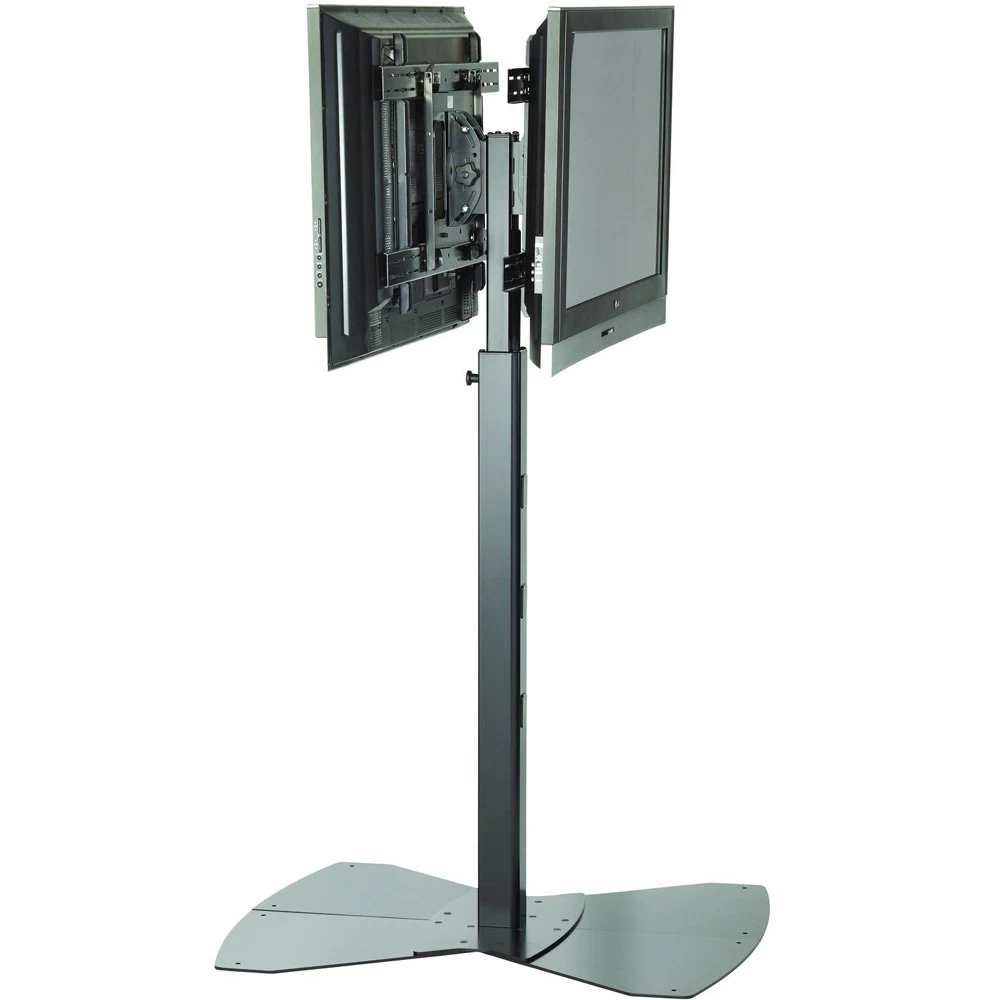

Chief PF22000 Large Dual Display Floor Stand (without Interface)

Related Products

Part Number
PF22000B	Black Flat Panel Dual Display Floor Stand Mount for 42 to 71″ Displays
PF22000S	Silver Flat Panel Dual Display Floor Stand for 42 to 71″ Displays



Chief PF2 AV stand supports two displays back-to-back and features telescoping
height adjustment and integrated cable management.

• Ideal for digital signage and corporate presentations



Technical Drawing



PSB-2020



Specifications

Center of Display to Floor/Table Range	51.38 – 85.38″ (1305 – 2169mm)
Color	Black, Silver
Manual Height Adjustment	34″
Mounting Pattern Compatibility (Universal Versions)	200 x 200mm – 862 x 517mm
Orientation	Landscape, Portrait
Overall Dimensions (H x W x D)	94.5″ x 36.0″ x 43.0″ (2400 x 914 x 1092mm)
Post-Installation Leveling (Roll)	Yes
Shipping Weight	144.00 lbs
Tilt	+ 15°, – 15°
Typical Screen Sizes	42 – 71″
Weight Capacity	200 lbs (90.7kg) per display



Features

• Centris Technology provides effortless, fingertip tilt
• Screen angle stays set in place until you decide to re-adjust
• Provides telescoping height adjustment without tools
• ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
• Offers quick connect/disconnect with no tools necessary
• Includes integrated security with the addition of a padlock
• Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
• Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
• Flat, angled base makes corner positioning easy
