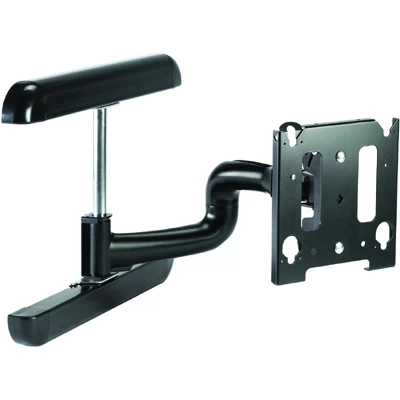

Chief MWRUB Medium Swing Arm Wall Mount – 25″ Extension

Related Products

Part Number
MWRUB	Black Adjustable Flat Panel Swing Arm Wall Mount
MWRVB	Black VESA Flat Panel Swing Arm Wall Mount



Chief MWR provides extended viewing angles for flat panel displays. Standard
display mounts are for 16″ on center wood stud walls. Additional versions
available for metal studs and in-wall applications.



Technical Drawing



Specifications

Color	Black
Lateral Shift	12″ (304.8mm)
Maximum Extension	24.88″ (632.mm), does not include interface bracket (adds 0.5 – 1.5″)
Minimum Depth	3.38″ (85.9mm), does not include interface bracket (adds 0.5 – 1.5″)
Mounting Pattern Compatibility (Universal Versions)	100 x 100mm – 709 x 431mm
Orientation	Landscape, Portrait
Overall Dimensions (H x W x D)	18.0″ x 23.6″ x 3.4″ (457 x 600 x 86mm)
Post-Installation Leveling (Roll)	Yes
Shipping Weight	MWRUB: 45.00 lbs, MWRVB: 42.00 lbs
Solution Type	Universal
Tilt	+ 5°, – 15°
Typical Screen Sizes	30 – 55″
Wall Stud Compatibility (inches)	16″
Weight Capacity	125 lbs (56.7kg)



Features

• Provides full extension while remaining low profile in the home position
• Centris Technolgoy provides fingertip tilt adjustments
• CableTrac System provides a fast and effective way to route cables
• Swivel up to 90° left or right (depending upon screen size)
• Integrated lateral shift 6″ left and right (ships shifted 2.5″ to the left)
• Mounting guides provided for a hassle-free installation
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
