Chief MF16000 Medium Display Floor Stand (without Interface)

Related Products

Part Number
MF16000B	Black Flat Panel Single Display Floor Stand for 30 to 55″ Displays
MF16000S	Silver Single Display Floor TV Stand for 30 to 55″ Flat Panel Displays

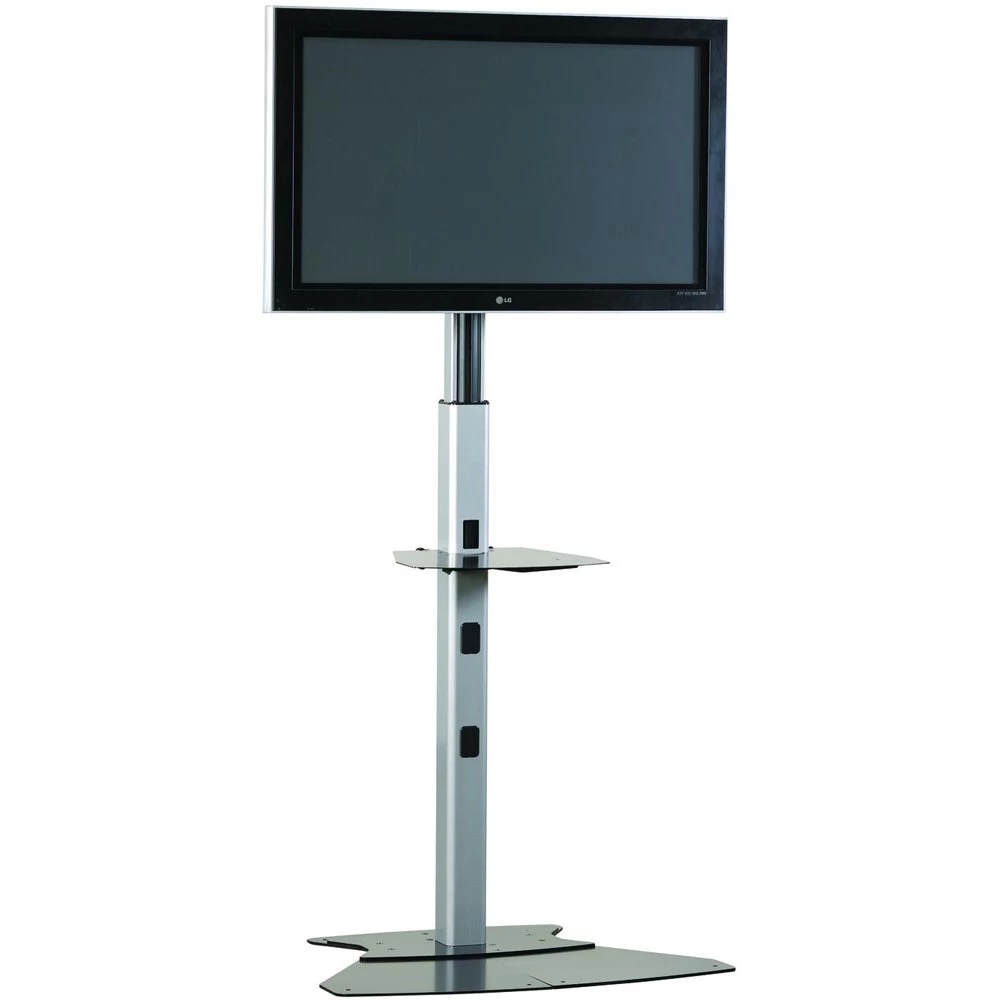

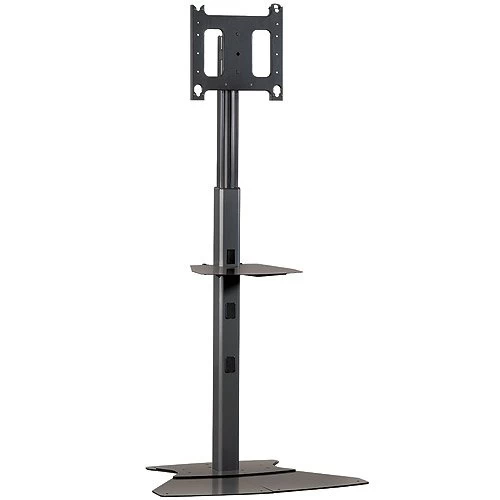

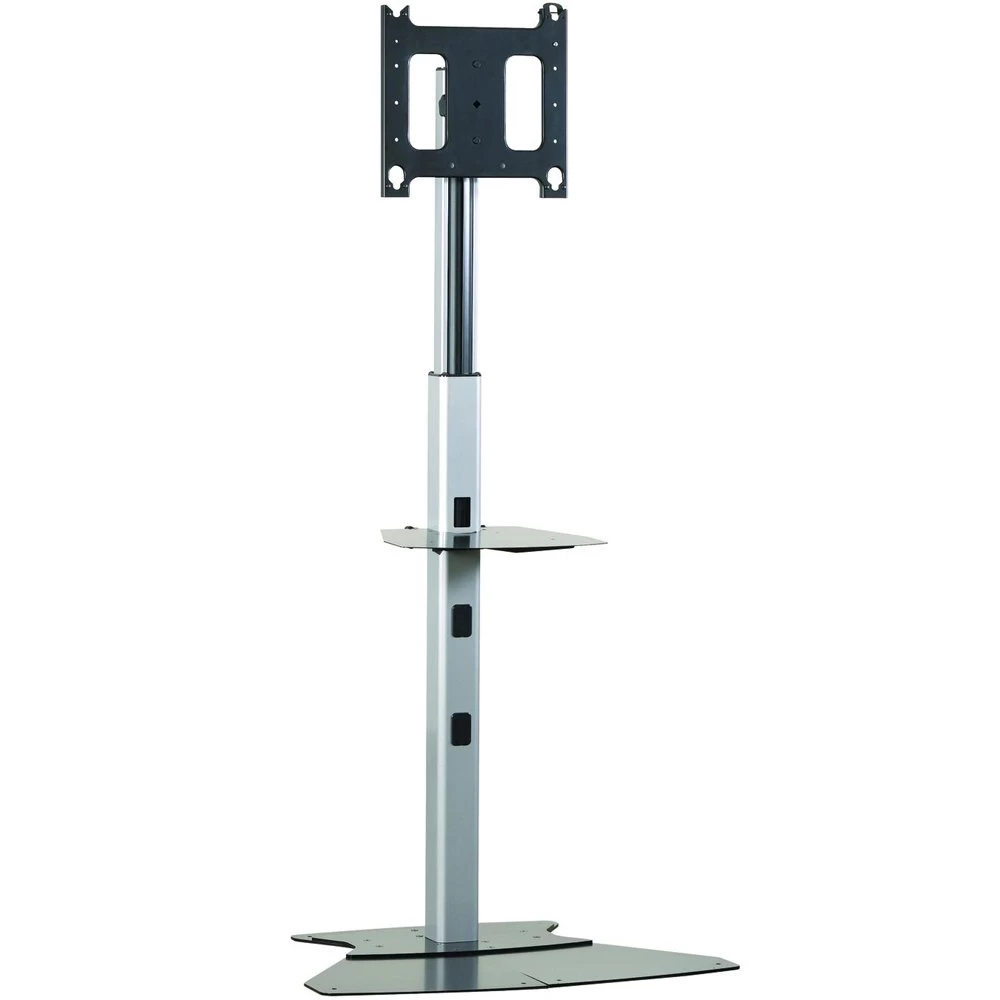

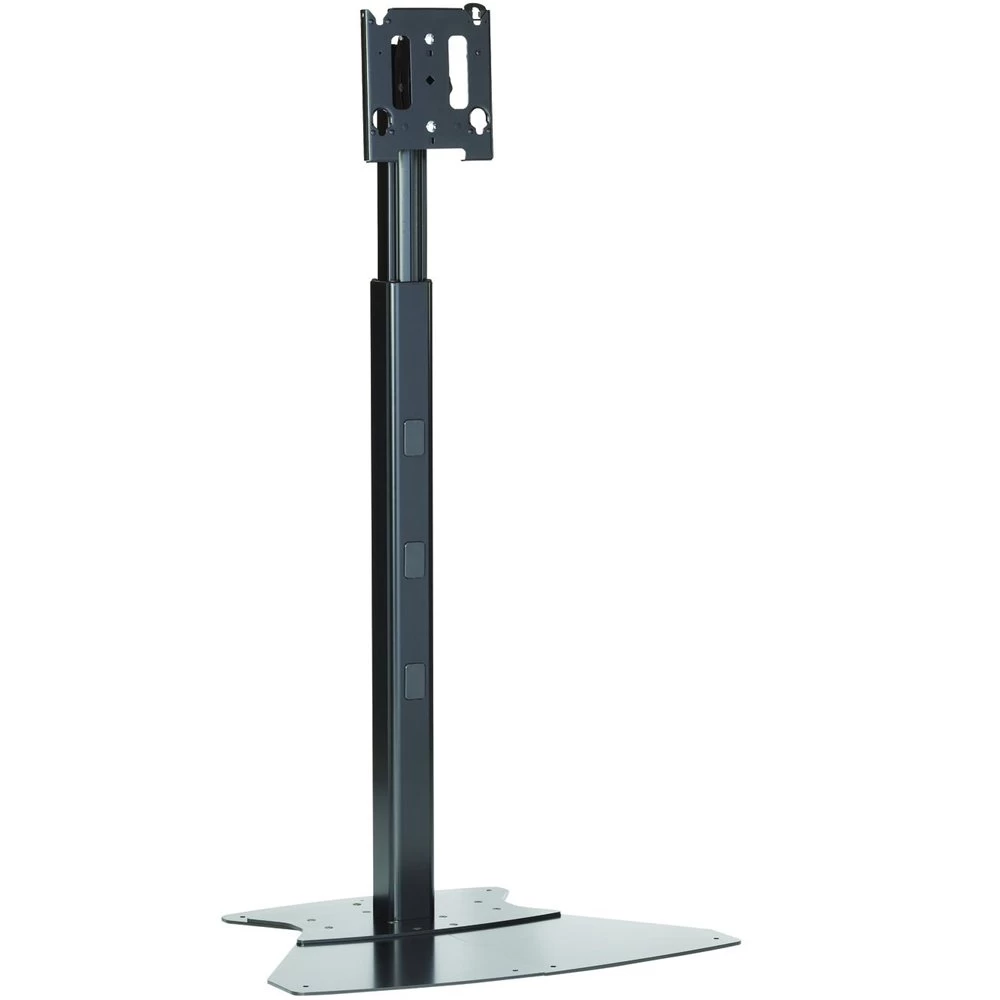

Chief MF16000 is a solid, low-profile solution for mounting a flat panel on a floor AV
stand.

• Ideal for digital signage and corporate presentations

• MF1UB and MF1US ship with a universal interface bracket

• MF16000B and MF162000S require an MSB interface to be purchased separately

• PAC710 height-adjustable accessory shelf shown is sold separately



Technical Drawing



MSB-6015



Specifications

Center of Display to Floor/Table Range	50.75 – 84.75″ (1289 – 2153mm)
Color	Black, Silver
Manual Height Adjustment	34″
Mounting Pattern Compatibility (Universal Versions)	100 x 100mm – 709 x 431mm
Orientation	Landscape, Portrait
Overall Dimensions (H x W x D)	91.6″ x 36.0″ x 30.0″ (2327 x 914 x 762mm)
Post-Installation Leveling (Roll)	Yes
Shipping Weight	137.00 lbs
Tilt	+ 15°, – 15°
Typical Screen Sizes	30 – 55″
Weight Capacity	125 lbs (56.7kg)



Features

• Centris Technology provides effortless, fingertip tilt
• Screen angle stays set in place until you decide to re-adjust

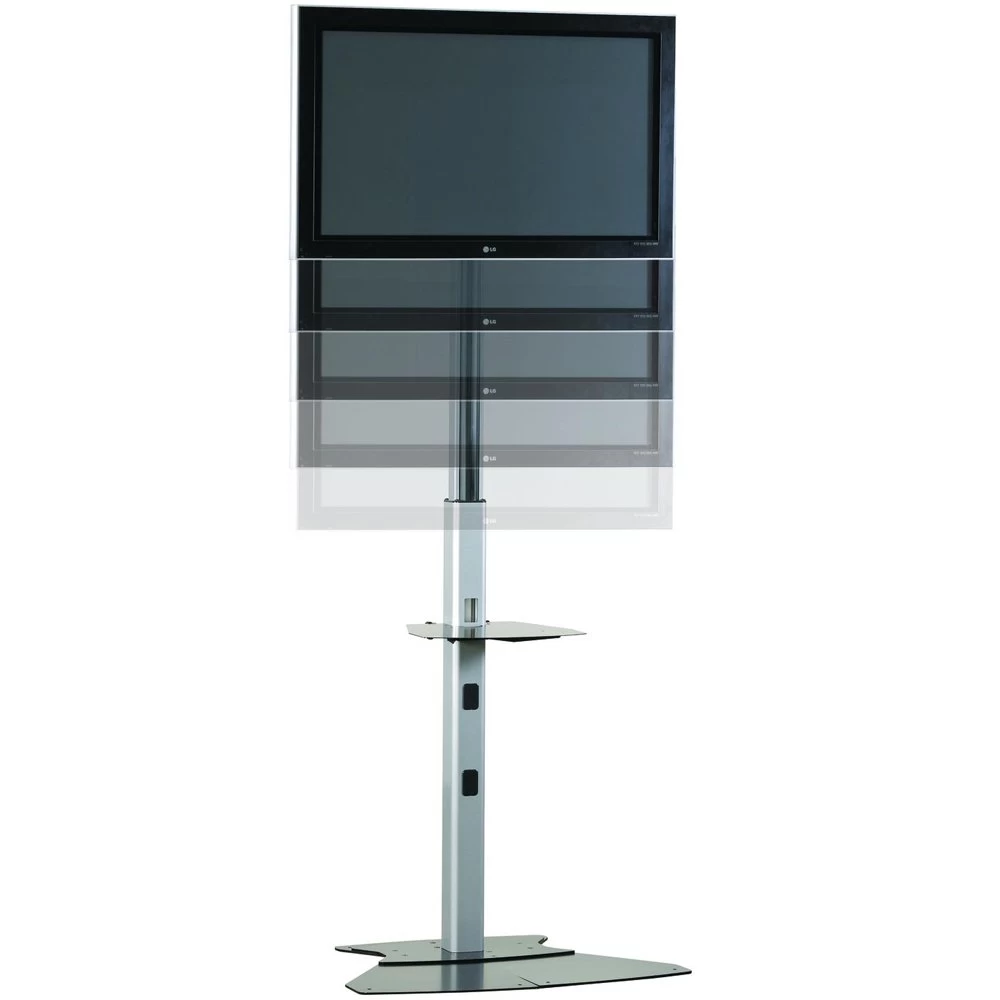

• Provides telescoping height adjustment (2″ increments) without tools
• ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
• Offers quick connect/disconnect without tools
• Includes integrated security with the addition of a padlock
• Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
• Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
• Flat, angled base makes corner positioning easy
