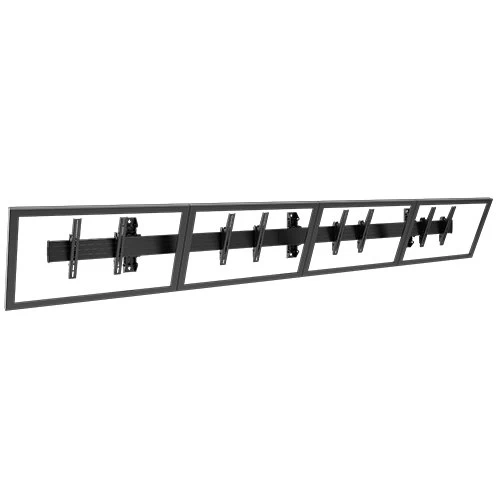

Chief LWM4X1U Fusion Large 4×1 Wall Menu Board

Chief LWM4X1U Fusion Menu Board Wall Mounts offer perfect display positioning
and flexible adjustments. The single horizontal extrusion with depth adjustment
aligns the screens quickly even on irregular mounting surfaces and allows easy
access behind the displays for servicing.



Technical Drawing



Specifications

Adjustments	Depth Adjust 0″ – 1″
Certifications	UL Listed
Color	Black
Manual Height Adjustment	2″ (or +/- 1″)
Minimum Depth	5.8″
Mounting Pattern Compatibility (Universal Versions)	Any width x 100 – 400 mm
Number of Monitors	4
Orientation	Landscape
Overall Dimensions (H x W x D)	16.75 x 156.8 x 5.8″ (425 x 3983 x 147 mm)
Post-Installation Leveling Roll	Dependant upon wall spacing
Screen Array Configuration	4 x 1
Solution Type	Universal
Tilt	+0°, -20°
Typical Screen Sizes	40-55″
Weight Capacity	125 lbs (56.7 kg) per display



Features

• Single horizontal extrusion keeps screens aligned

• ControlZone micro-height adjustment

• Centris tilt between +0 and -20 degrees

• Tool-free screen engagement

• Portrait and landscape options for 2×1 and 3×1 configurations

• Landscape for 4×1 and 5×1 configurations

• Accommodate 40-55″ screens

• Optional padlock security

• Full line of accessories that work across Fusion wall, ceiling and
  freestanding lines
