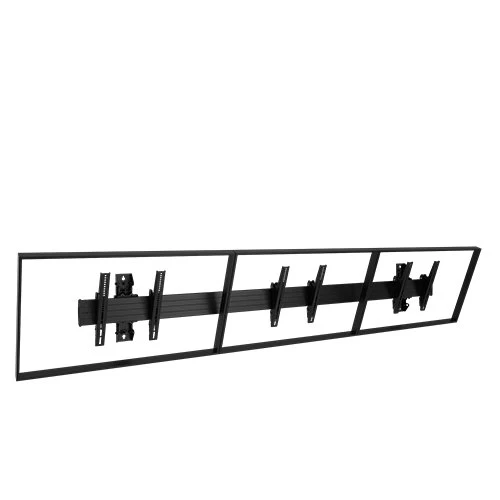

Chief LWM3X1U Fusion Menu Board Wall Mounts offer perfect display
positioning and flexible adjustments. The single horizontal extrusion
with depth adjustment aligns the screens quickly even on irregular
mounting surfaces and allows easy access behind the displays for
servicing.
Technical Drawing
Specifications
| Adjustments | Depth Adjust 0″ – 1″ |
| Certifications | UL Listed |
| Color | Black |
| Manual Height Adjustment | 2″ (or +/- 1″) |
| Minimum Depth | 5.8″ |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 – 400 mm |
| Number of Monitors | 3 |
| Overall Dimensions (H x W x D) | 16.75 x 108.8 x 5.8″ (425 x 2764 x 147 mm) |
| Post-Installation Leveling Roll | Dependant upon wall spacing |
| Screen Array Configuration | 3 x 1 |
| Solution Type | Universal |
| Tilt | + 0°, – 20° |
| Typical Screen Sizes | 40 – 55″ |
| Weight Capacity | 125 lbs (56.7 kg) per display |
| Orientation | Landscape |
Features
-
Single horizontal extrusion keeps screens aligned
-
ControlZone micro-height adjustment
-
Centris tilt between +0 and -20 degrees
-
Tool-free screen engagement
-
Portrait and landscape options for 2×1 and 3×1 configurations
-
Landscape for 4×1 and 5×1 configurations
-
Accommodate 40-55″ screens
-
Optional padlock security
-
Full line of accessories that work across Fusion wall, ceiling
and freestanding lines
| Model | LWM3X1U |
| Manufacturer | Chief Mounts |
| Part Number | LWM3X1U |
| UPC | 841872166339 |
| Color | Black |
| Adjustments | Depth Adjust 0″ – 1″ |
| Manual Height Adjustment | 2″ (or +/- 1″) |
| Minimum Depth | 5.8″ |
| Mounting Pattern | Any width x 100 – 400 mm |
| Overall Dimensions | 16.75 x 108.8 x 5.8″ (425 x 2764 x 147 mm) |
| Tilt | +0 degree, -20 degree |
| Monitor Size | 40 – 55″ |
| Weight Capacity | 125 lbs (56.7 kg) per display |
| Number of Monitors | 3 Monitors |
| Mounting Options | Wall |
| Orientation | Landscape |
