Chief LVS1U ConnexSys™ Video Wall Landscape Mounting System With Rails

Finally, a system built through aggregate feedback from installers.  ConnexSys™ is designed to address all the challenges that installers faced in terms of speed, alignment, serviceability and rigigdity.  The ConnexSys™ Video
Wall Mounting System provides the ability to level each row once by using strut
channel to connect multiple mounts together with a simple-to-install system that
can handle the largest requirements

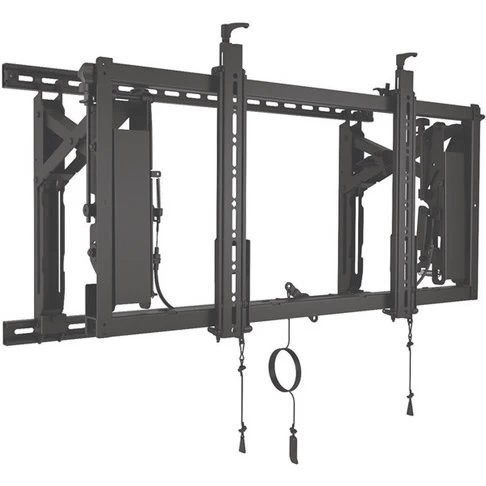

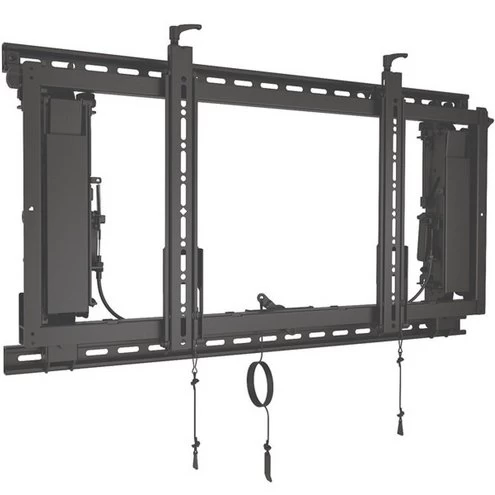

The LVS1U ConnexSys™ Video Wall system landscape mount ships with rails for each
mount.



Technical Drawing



Specifications

Certifications	UL Listed
Color	Black
Manual Height Adjustment	± 1″
Maximum Extension	13.4″ (34.0 cm)
Minimum Depth	4″
Mounting Pattern Compatibility (Universal Versions)	200 x 100 – 700 x 400 mm
Orientation	Landscape
Overall Dimensions (H x W x D)	21.8 x 35.5 x 4.0″ (554 x 902 x 102 mm)
Shipping Weight	44.00 lbs
Solution Type	Universal
Tilt	+ 4.0°, -2.5°
Typical Screen Sizes	42 – 80″
Weight Capacity	150 lbs (68 kg)



Features

Speed

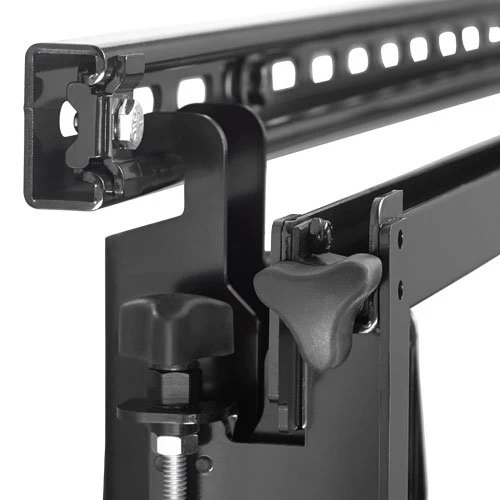

• Hang units on a single strut channel for quick row leveling
• No need for horizontal spacers
• Vertical measurement is simply the height of the display to the next rail
• Compatible with most 1-5/8″ sizes of channel strut
• Reduces installation time – especially for XL and recessed configurations
• Tool-free ClickConnect latching secures displays
• PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount

Alignment

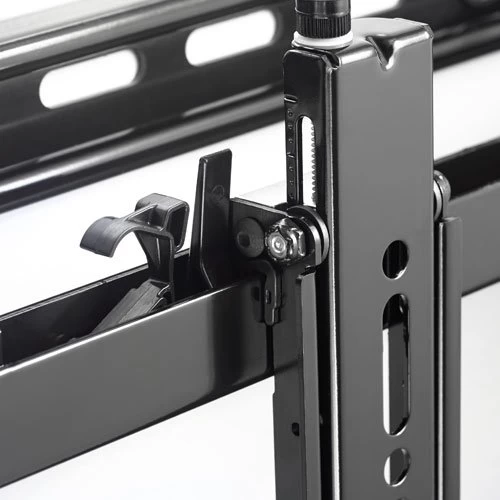

• PowerZone Adjustments
• Height adjustment ±1″ on each interface
• Tilt adjustment at single pivot point, protects displays from twisting
• Depth can be set between 4″ and 7.4″ from the wall, providing a range of “home positions” ideal for recessed installations
• Both sides adjust independently, compensating for imperfections in the wall
• Walls can be out of alignment by up to 2″ (horizontally)
• 3 levels of lateral adjustment
• Mount left/right along rail
• Interface left/right along mount
• Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions

Serviceability

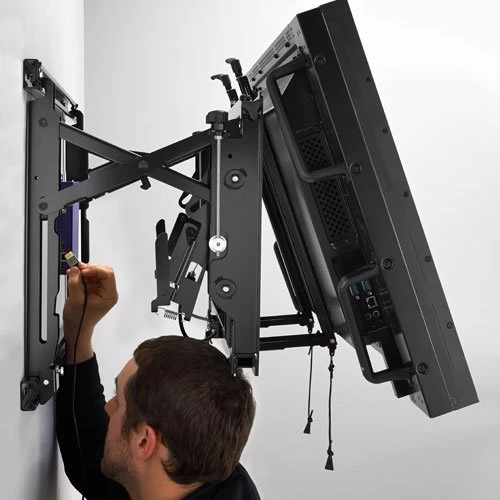

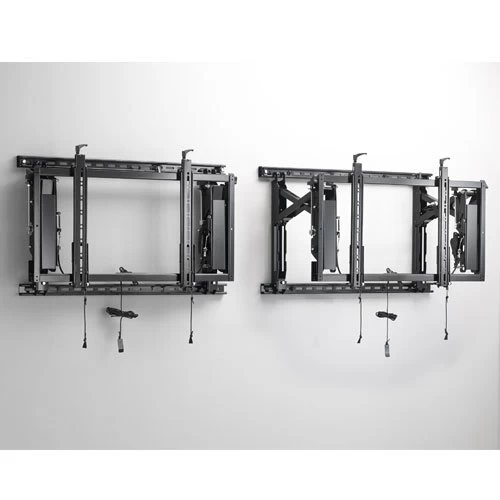

• RapidDraw Display Release
• Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4″ for service
• Protects displays by not requiring an aggressive push to release/pop-out
• Releases only on demand, preventing accidental pop-outs
• The 10′ (304.8 cm) cord can be set up to pull for release from any 90 degree angle
• Kickstand provides 20 degrees of bottom tilt access

Rigidity

• Rigid frame keeps displays where you set them, even after extending for service
• Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Miscellaneous

• Security – pad lock ¼” shank diameter
• Safety tested
• Universal interface
• Each mount comes out of the box with adjustments set in the exact same position
