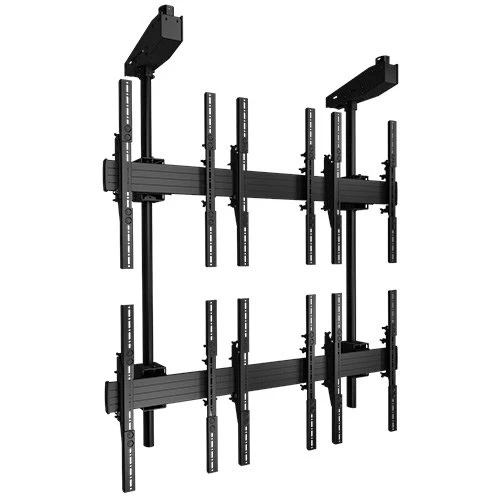

Chief’s LCM3X2UP FUSION ceiling mounted solutions make it possible to
construct video walls in prominent locations where walls aren’t
available. Comes in 2 x 100, 3 x 2 and 3 x 3 arrangements. Great for
digital signage installations.
-
Screen array configuration: screens wide x screens high
-
Confirm screen compatibility with MountFinder
Technical Drawing
Specifications
| Adjustments | Micro-Adjustments of 2″ at structural intersection points |
| Certifications | UL Listed |
| Color | Black |
| Manual Height Adjustment | 1″ (25 mm) increments at structural intersections |
| Mounting Pattern Compatibility (Universal Versions) | 100 – 800 mm x Any Height |
| Notes | Weight capacity is per display, Max Screen Height 45″ (114 cm) |
| Number of Monitors | 6 |
| Plumb Adjustment | Micro-adjustment up to 0.75″ (19 mm) |
| Screen Array Configuration | 3 x 2 |
| Shipping Weight | 190 lbs (86.18 kg) |
| Typical Screen Sizes | 40″ – 50″ (102 – 127 cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Portrait |
Features
-
Precise Screen Alignment – Easily align displays with
independent knobs for height and plumb adjustments, no tools required -
Controlzone Leveling – Micro-height and leveling adjustment at
all column intersection points -
Infinite Screen Positioning – Infinite vertical and lateral
adjustments provide tight display rows and columns -
Heavy-Duty Construction – Solid construction supports displays
up to 55″ -
Configurable – Add configurations side by side to create any
video wall arrangements up to 3 screens tall -
Ceiling Plate and Extension Column are required and must be
ordered separately. Compatible with traditional 1.5″ NPT and new CPA
pinned ceiling plates and column systems. Ceiling plates and extension
columns (Adjustable and Fixed) for 1.5″ NPT compatibility. CPA ceiling
plates and CPA columns for pin connection compatibility
| Model | LCM3x2UP |
| Manufacturer | Chief Mounts |
| Part Number | LCM3x2UP |
| UPC | 841872159119 |
| Color | Black |
| Adjustments | Micro-Adjustments of 2″ at structural intersection points |
| Manual Height Adjustment | 1″ (25 mm) increments at structural intersections |
| Mounting Pattern | 100 – 800 mm x Any Height |
| Maximum Screen Height | 45″ (114 cm) |
| Plumb Adjustment | Micro-adjustment up to 0.75″ (19 mm) |
| Monitor Size | 40″ – 50″ (102 – 127 cm) |
| Weight Capacity | 125 lbs (56.7 kg) per screen |
| Shipping Weight | 190 lbs (86.18 kg) |
| Orientation | Portrait |
| Number of Monitors | 6 Monitors |
