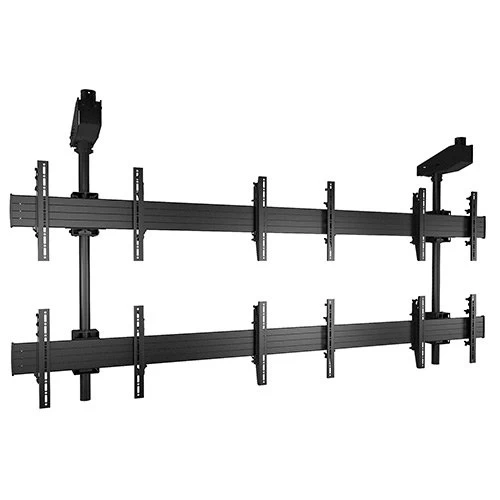

Chief LCM3X2U Fusion Large Ceiling Mounted 3×2 Video Wall

Chief’s LCM3X2U FUSION ceiling mounted solutions make it possible to
construct video walls in prominent locations where walls aren’t
available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for
digital signage installations.

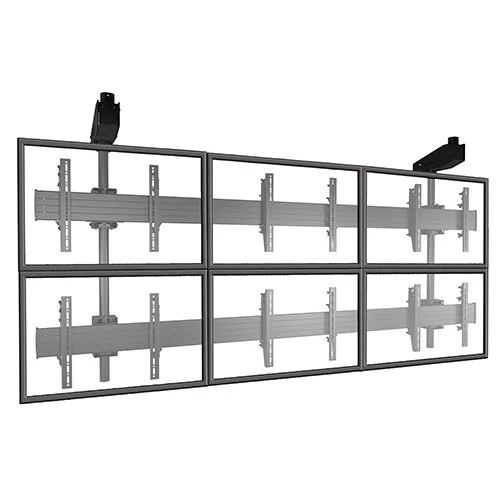

• Screen array configuration: screens wide x screens high

• Confirm screen compatibility with MountFinder

Provide aesthetic covering to the rear side of the displays,
components and mount using the Chief Fusion Universal Back Covers.

Technical Drawing

Specifications

Features

• Precise Screen Alignment – Easily align displays with
  independent knobs for height and plumb adjustments, no tools required.

• Controlzone Leveling – Micro-height and leveling adjustment at
  all column intersection points.

• Infinite Screen Positioning – Infinite vertical and lateral
  adjustments provide tight display rows and columns.

• Heavy-Duty Construction – Solid construction supports displays
  up to 55″ and 125 lbs (56.7 kg) per screen.

• Configurable – Add configurations side by side to create any
  video wall arrangements up to 3 screens tall.

• Ceiling Plate and Extension Column are required and must be
  ordered separately. Compatible with traditional 1.5″ NPT and new CPA
  pinned ceiling plates and column systems. Ceiling plates and extension
  columns (Adjustable and Fixed) for 1.5″ NPT compatibility. CPA ceiling
  plates and CPA columns for pin connection compatibility
