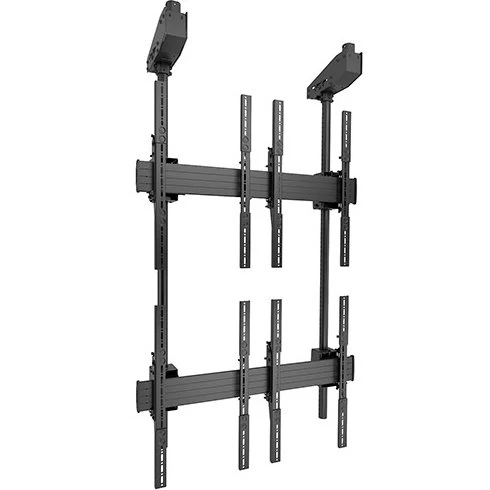

Chief LCM2x2UP Portrait Large Ceiling Mounted 2×2 Video Wall

Chief’s LCM2X2UP FUSION ceiling
mounted solutions make it possible to construct video walls in prominent
locations where walls aren’t available. Comes in 2 x 2, 3 x 2 and 3 x 3
arrangements. Great for digital signage installations.

• Screen array configuration:
  screens wide x screens high

• Confirm screen compatibility
  with MountFinder



Technical Drawing



Features

• Precise Screen Alignment –
  Easily align displays with independent knobs for height and plumb adjustments,
  no tools required.

• Controlzone Leveling –
  Micro-height and leveling adjustment at all column intersection points.

• Infinite Screen Positioning –
  Infinite vertical and lateral adjustments provide tight display rows and
  columns.

• Heavy-Duty Construction – Solid
  construction supports displays up to 55″.

• Configurable – Add
  configurations side by side to create any video wall arrangements up to 3
  screens tall.

• Ceiling plate and extension
  column are required and must be ordered separately. Compatible with traditional
  1.5″ NPT and new CPA pinned ceiling plates and column systems. Ceiling plates
  and extension columns (Adjustable and Fixed) for 1.5″ NPT compatibility. CPA
  ceiling plates and CPA columns for pin connection compatibility

• TAA Compliant



Technical Specifications

Adjustments	Micro-Adjustments of 2″ at structural intersection points
Certifications	UL listed
Color	Black
Manual Height Adjustment	1″ (25 mm) increments at structural intersections
Mounting Pattern Compatibility (Universal Versions)	Any width x 100 mm – 400 mm
Notes	TAA Compliant
Orientation	Portrait
Plumb Adjustment	Micro-adjustment up to 0.75″ (19 mm)
Screen Array Configuration	2 x 2
Shipping Weight	154 lbs
Typical Screen Sizes	40″ – 50″ (102 – 127 cm)
Weight Capacity	125 lbs per screen
