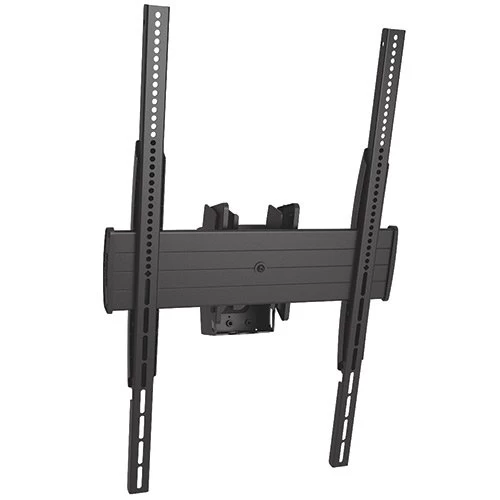

Chief LCM1UP FUSION Large Portrait Flat Panel Ceiling Mount

Chief’s LCM1UP FUSION Flat Panel Ceiling Mounts are installer
inspired and offer perfect TV positioning and flexible adjustments for
large flat panel screens. Great for digital signage installations.

• Ceiling Plate and extension column are required and must be
  ordered separately

• Compatible with traditional 1.5″ NPT and new CPA pinned ceiling
  plates and column systems

• Ceiling plates and extension columns (Adjustable and Fixed) for
  1.5″ NPT compatibility

• CPA ceiling plates and CPA columns for pin connection
  compatibility

Technical Drawing

Specifications

Features

• Repeatability – Continuous tilt ranges with four set locking
  points to eliminate guess work when adjusting multiple screens

• Accessibility – Simple on/off connection for ease of
  installation and service

• Centris Fingertip Tilt – Effortlessly adjust display using
  Centris fingertip tilt technology

• Simple & Secure – Tool free screen engagement with optional
  padlock security

• Flexibility – Mount swivels to any preferred viewing angle. Set
  screws lock in desired angle

• Portrait – FUSION rail is 400mm wide and the TV uprights reach
  patterns up to 800mm tall

• TAA Compliant
