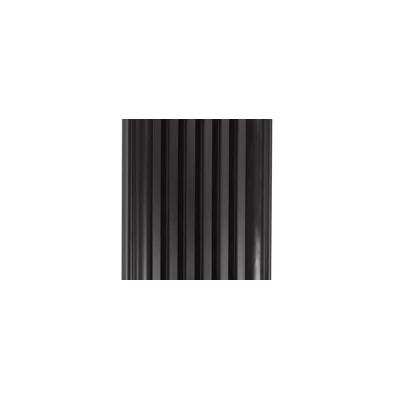

Chief KSA1022B Wall Track Accessory

Chief KSA1022 Wall Track Accessory is compatible with Chief’s monitor mounts and
accessories, and is a great slat wall solution for easy monitor adjustment.



Technical Drawing



Specifications

Color	Black
Equipment Weight Capacity	Mounting Horizontally across 2 studs: 2 mounts max, 25 lbs (11.3kg) per mount max; Horizontally mounting across 3 studs: 3 mount max, 25 lbs (11.3kg) per mount max; Vertical Drywall mounting: 2 mounts max, 25 lbs (11.3kg) per mount max; Vertical Stud mounting: 3 mounts max, 25 lbs (11.3kg) per mount max
Notes	TAA Compliant
Overall Dimensions (H x W x D)	36.2″ x 9.5″ x 0.9″ (918 x 241 x 22mm)
Shipping Weight	10.95 lbs



Features

• Install vertically or horizontally on the wall
• Position components anywhere along the entire length of the extrusion
• Easy workstation customization
• Cable channels keep cables hidden
• Mounting Weight Capacity: 1. Horizontal mounted across 2 studs: 2 mounts max, 25 lbs (11.3kg) per mount max, 2. Horizontal mounted across 3 studs: 3 mounts max, 25 lbs (11.3kg) per mount max, 3. Vertical Drywall mounted: 2 mounts max, 25 lbs (11.3kg) per mount max, 4. Vertical Stud mounted: 3 mounts max, 25 lbs (11.3kg) per mount max
• TAA Compliant
