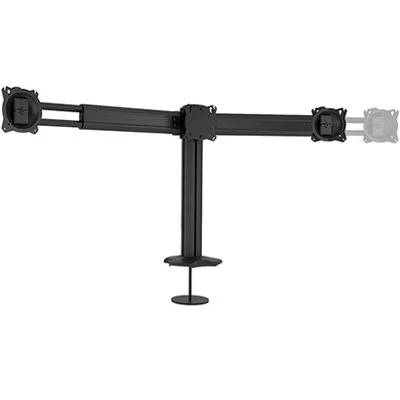

Flexibility meets form and function with the Kontour K3 Series of
elegantly designed static array mounts from Chief. Chief K3G310, with
its extendable array arms, can accommodate up to two 30″+ monitors. With
included center monitor head, it can even accommodate up to three 27″
monitors.
The K3G310 provides an aesthetic & stable solution for designers, call
centers, security desks, IT, health care, control rooms and other
multiple monitor settings.
Technical Drawing
Specifications
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 – 5″ (13 – 127mm) |
| Grommet Hole Size Range | 0.38″ – 3.5″ (10 – 89mm) |
| Mounting Method | Grommet-mount |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 or 3 |
| Overall Dimensions (H x W x D) | 20.87″ x 40.17″ x 7.03″ (530mm x 102mm x 178.5mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 2×1 or 3×1 |
| Shipping Weight | 25.72 lbs (11.67 kg) |
| Solution Type | Universal |
| Tilt | Heads on rails: 12-degrees; Head on column: 10-degrees |
| TV Width Range | 2×1: 51.2″ (1301 mm) max width; 3×1: 25.6″ (650 mm) max width |
| Typical Screen Sizes | 2×1: up to 30″ diagonal; 3×1: up to 27″ diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
-
Telescoping Arm rails add 8″ (20.3 cm) per Arm of lateral
adjustment for larger monitors -
Centris heads can easily be moved from the telescoping rails to
the array arms for nearly unlimited lateral adjustment, so aligning
monitors horizontally is a breeze -
Patented Centris technology in heads provides smooth, fingertip
tilt 12° in all directions -
Center column heads feature 10° of vertical tilt
-
Independent height adjustment of each Arm and each Center Head
along the column provides easy fine-tuning of vertical screen
alignment -
Array arms can be adjusted from flat up to a 15° angle toward
the user for optimization of viewing angles -
Easy Installation
-
Product comes pre-assembled for fast & easy installation
-
Teardrop hole pattern simplifies monitor mounting
-
VESA 75 x 75 mm and 100 x 100 mm compatible
-
Tool-free integrated cable management
| Model | K3G310B, K3G310S |
| Manufacturer | Chief Mounts |
| Part Number | K3G310B, K3G310S |
| UPC | 841872157047 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 |
| Grommet Hole Size Range | 0.38 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 20.87 |
| Shipping Weight | 25.72 lbs (11.67 kg) |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Number of Monitors | 3 Monitors |
| Tilt | Heads on rails 12 degree and head on column 10 degree |
| TV Width Range | 2×1: 51.2 |
| Monitor Size | 2×1: up to 30 |
| Weight Capacity | 15 lb (6.8 kg) per monitor |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
