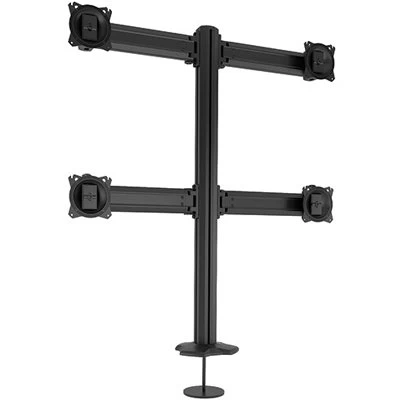

Flexibility meets form and function with the Kontour K3 Series of
elegantly designed static array mounts from Chief. Chief K3G220 provides
an aesthetic, stable solution for call centers, security desks, IT,
health care, control rooms and other multiple monitor settings. KRA500
Desk Clamp accessory available is for all K3 Series array mounts.
Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 – 5″ (13 – 127mm) |
| Grommet Hole Size Range | 0.38″ – 3.5″ (10 – 89mm) |
| Mounting Method | Grommet-mount |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 4 |
| Overall Dimensions (H x W x D) | 38.81″ x 34.02″ x 7.03″ (985.8 x 864.1 x 178.5mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 2 x 2 |
| Shipping Weight | 30 lbs (13.61 kg) |
| Solution Type | Universal |
| Tilt | 12-degrees |
| TV Width Range | 29.3″ (744 mm) max |
| Typical Screen Sizes | Up to 27″ diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
-
Monitor heads can easily be moved along the array arm for
lateral adjustment, for easy screen alignment -
Centris technology in heads provides smooth, fingertip
12-degree tilt in all directions -
Accommodates monitors up to 29″ max width, with 15 lbs. per
monitor max weight -
Independent height adjustment of each arm
-
Array arms can be adjusted from flat up to a 15-degree angle
toward the user -
Simple installation
-
Teardrop hole pattern makes mounting monitors quick and easy
-
VESA 75 x 75 mm and 100 x 100 mm compatible
-
Tool-free, integrated cable management
| Model | K3G220B or K3G220S |
| Manufacturer | Chief Mounts |
| Part Number | K3G220B or K3G220S |
| UPC | 841872157030 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 – 5 |
| Grommet Hole Size Range | 0.38 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 38.81 |
| Tilt | 12 degree |
| Monitor Size | Up to 27 |
| Mounting Options | Desk |
| Number of Monitors | 4 Monitors |
| Weight Capacity | 15 lbs (6.8 kg) per monitor |
| TV Width Range | 29.3 |
| Orientation | Landscape, Portrait |
| Shipping Weight | 30 lbs (13.61 kg) |
