Related Products
| Part Number | |
| JWDVB | Black Wall Mount Flat Panel Dual Swing LCD Arm for 26 to 45″ |
| JWDVS | Silver Flat Panel Dual Swing LCD Arm Wall Mount for 26 to 45″ |
| JWDUB | Black Dual Swing LCD Arm Wall Mount for 26 to 45″ Flat Panel |
| JWDUS | Silver Universal Flat Panel Dual Swing Arm Wall Mount for 26 |
| JWD210B | Black Wall Mount Flat Panel Dual Swing LCD Arm for |
| JWD210S | Silver Flat Panel Dual Swing LCD Arm Wall Mount for 26 to 45 |

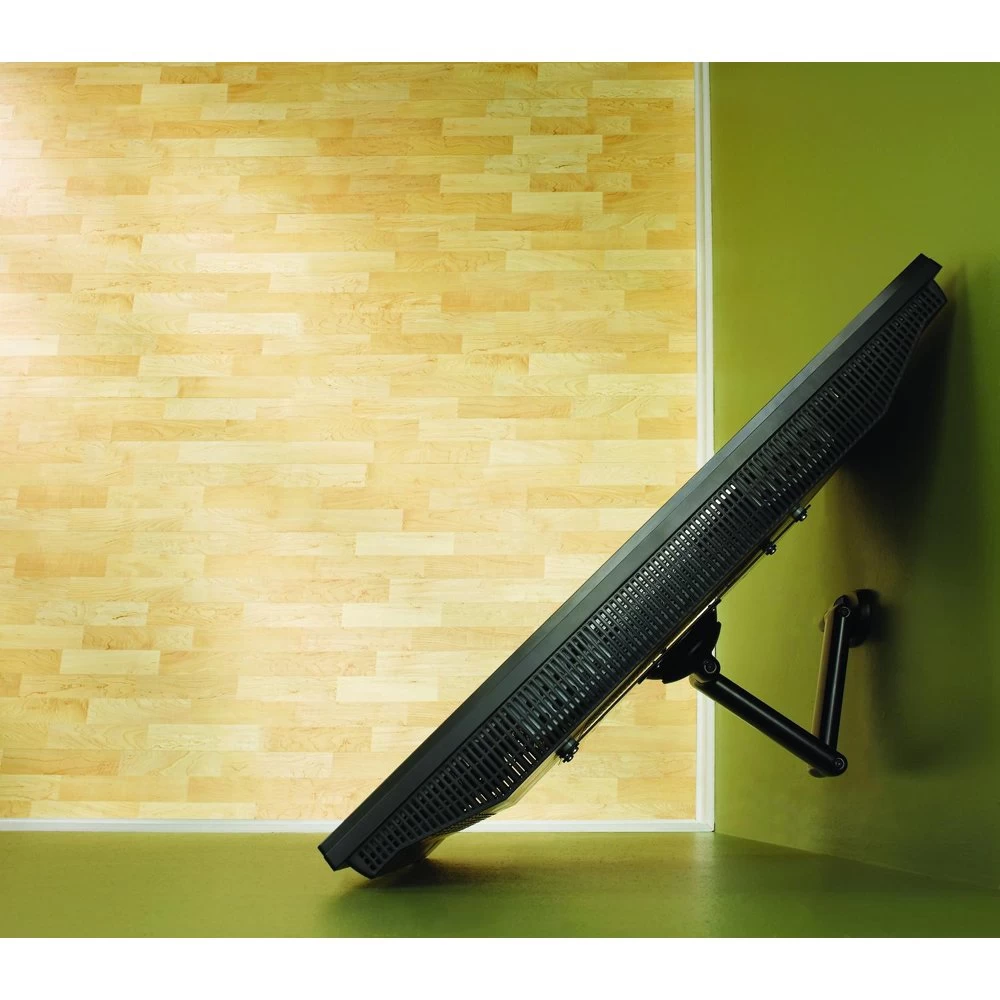

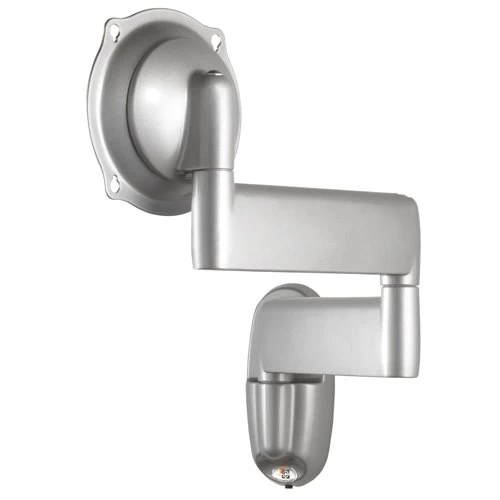

Chief JWD series provides a broad range of motion for viewing medium flat panel
displays and monitors from multiple angles. Standard solutions are for single
wood stud installations. Additional versions available for 16″ on center
wood/metal studs and in-wall applications.
Technical Drawing
Specifications
| Color | Black, Silver |
| Maximum Extension | 20.38″ (517.7mm) |
| Minimum Depth | 2.69″ (68.3mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm – 400 x 400mm |
| Notes | Depth and Extension do not include interface bracket (adds |
| Orientation | Landscape, Portrait |
| Overall Dimensions (H x W x D) | 14.7″ x 12.1″ x 2.7″ (373 x 308 x 68mm) |
| Post-Installation Leveling (Roll) | Yes |
| Shipping Weight | JWD210: 15.00 lbs, JWDU: 15.80 lbs, JWDV: 18.00 lbs |
| Solution Type | Universal |
| Tilt | + 15°, – 15° |
| Typical Screen Sizes | 26 – 45″ |
| Wall Stud Compatibility (inches) | Single Stud |
| Weight Capacity | 75 lbs (34.kg) |
Features
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Folds in close to the wall for a low-profile appearance.
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Single stud wall mounting
- Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
| Model | JWD Series |
| Manufacturer | Chief Mounts |
| Part Number | JWD Series |
| UPC | 841872063980 |
| Weight | lb(s) |
| Mounting Options | Wall |
| Color | Black, Silver |
| Maximum Extension | 20.38″ (517.7mm) |
| Minimum Depth | 2.69″ (68.3mm) |
| Mounting Pattern | 100 x 100mm – 400 x 400mm |
| Overall Dimensions | 14.7″ x 12.1″ x 2.7″ (373 x 308 x 68mm) |
| Shipping Weight | JWD210: 15.00 lbs, JWDU: 15.80 lbs, JWDV: 18.00 lbs |
| Tilt | + 15, – 15 degree |
| Monitor Size | 26 – 45″ |
| Weight Capacity | 75 lbs (34.kg) |
