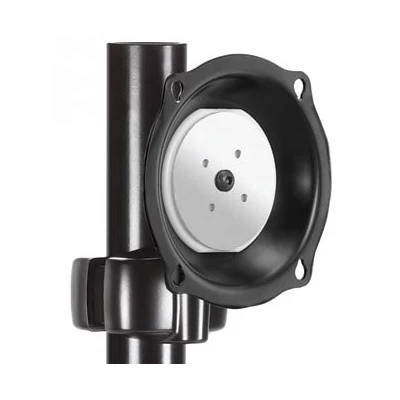

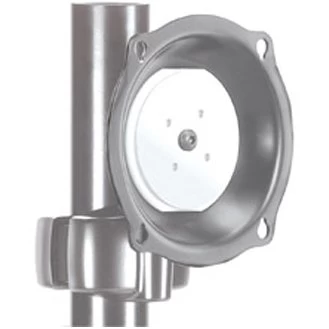

Chief JPP210 is a great flat panel mount solution with pivot/tilt features used
for mounting a medium size flat panel display on a pole.
Technical Drawing
Specifications
| Color | Black and Silver |
| Minimum Depth | 3.5″ (88.9mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm – 400 x 400mm |
| Orientation | Landscape, Portrait |
| Overall Dimensions (H x W x D) | 7.5″ x 6.0″ x 3.5″ (189 x 152 x 89mm) |
| Pivot (numerical value) | Yes |
| Pole Diameter Range | 1.5 – 2″ (38 – 51mm) |
| Post-Installation Leveling (Roll) | Yes |
| Shipping Weight | JPP210B/S: 5.95 lbs JPPUB/S: 8.45 lbs JPPVB/S: 8.95 lbs |
| Solution Type | Universal |
| Tilt | + 15°, – 15° |
| Typical Screen Sizes | 26 – 45″ |
| Weight Capacity | 75 lbs (34.kg) |
Features
- Centris Technology provides smooth, fingertip tilt in all directions
- Portrait and landscape mounting capability
- Smooth swivel up to 15° in any direction
- Fast height adjustment for ergonomic alignment
- Attaches to 1.5″ – 2.0″ diameter poles
- Universal models available for VESA 100 x 100 mm up to 400 x 400 mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
| Model | JPP Series |
| Manufacturer | Chief Mounts |
| Part Number | JPP Series |
| UPC | 841872114422 |
| Weight | lb(s) |
| Color | Black, Silver |
| Minimum Depth | 3.5″ (88.9 mm) |
| Mounting Pattern | 100 x 100 mm – 400 x 400 mm |
| Pole Diameter | 1.5 – 2″ (38 – 51 mm) |
| Tilt | +15 degree, -15 degree |
| Screen Size | 26 – 45 in |
| Weight Capacity | 75 lbs (34 kg) |
| Mounting Options | Pole |
| Monitor Arm Types | 1 Monitor |
| Shipping Weight | JPP210B/S: 5.95 lbs, JPPUB/S: 8.45 lbs and JPPVB/S: 8.95 lbs |
| Overall Dimensions | 7.5″ x 6.0″ x 3.5″ (189 x 152 x 89mm) |
