| Part Number | |
| JHSVB | Black Flat Panel Single Ceiling Mount for 26 to 45″ Displays. It attaches to monitors with Standard 400 x 400 mm VESA. This adaptor is adjustable so it can be attached to any monitor with VESA from 200 to 400 even in between sizes. |
| JHSUB | Black Universal Flat Panel Single Ceiling Mount for 26 to 45″ |
| JHS210B | Black Custom Flat Panel Single Ceiling Mount for 26 to 45″ |
| JHS210S | Silver Custom Single Ceiling Mount for 26 to 45″ Flat Panel |

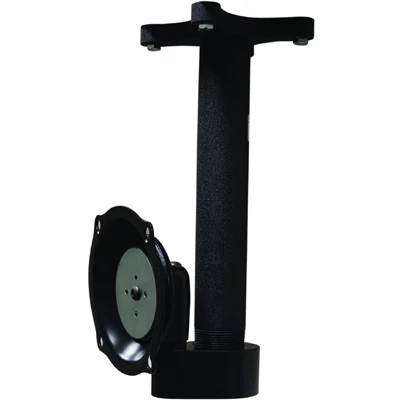

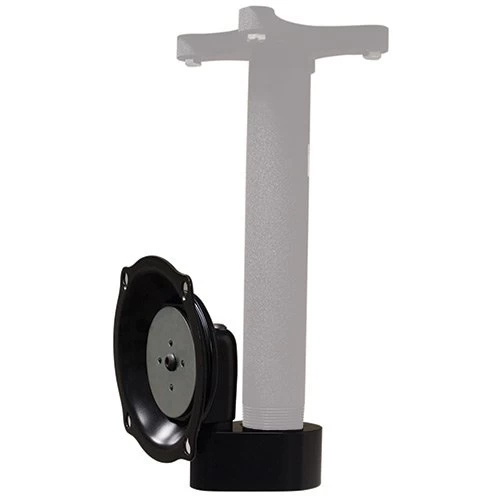

Chief JHS series single-screen ceiling mount for flat panel displays that
combines Chief’s exclusive Centris tilt with quick ceiling mount installation.
-
Ceiling plate and extension column (Adjustable and Fixed) are required and must
be ordered separately to fit your specific installation requirements
Technical Drawing
Specifications
| Certifications | UL Listed |
| Color | Black |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm – 400 x 400mm |
| Orientation | Landscape, Portrait |
| Overall Dimensions (H x W x D) | 6.0″ x 6.6″ x 5.1″ (152 x 167 x 128mm) |
| Pivot (numerical value) | Yes |
| Post-Installation Leveling (Roll) | Yes |
| Shipping Weight | JHS210: 7.00 lbs JHSUB: 8.40 lbs JHSVB: 10.00 lbs |
| Solution Type | Universal |
| Tilt | + 15°, – 15° |
| Typical Screen Sizes | 26 – 45″ |
| Weight Capacity | 75 lbs (34.kg) |
Features
- Exclusive Centris Technology fingertip tilt self-adjusts to securely hold different display weights
- Screen angle stays set in place until you decide to re-adjust
- Post-installation leveling with no tools necessary
- Fast and easy screen positioning with lockdown capability
- Portrait and landscape mounting capability
- Easily route cables through 1.5″ NPT extension column
- Set screw security
- Universal models available for VESA 100 x 100 mm up to 400 x 400 mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
| Model | JHS Series |
| Manufacturer | Chief Mounts |
| Part Number | JHS Series |
| UPC | 841872100548 |
| Weight | lb(s) |
| Mounting Options | Ceiling |
| Monitor Arm Types | 1 Monitor |
| Color | Black |
| Mounting Pattern | 100 x 100mm – 400 x 400mm |
| Overall Dimensions | 6.0″ x 6.6″ x 5.1″ (152 x 167 x 128mm) |
| Shipping Weight | JHSVB: 10.00 lbs, JHSUB: 8.40 lbs, JHS210: 7.00 lbs |
| Tilt | + 15, – 15 degree |
| Monitor Size | 26 – 45″ |
| Weight Capacity | 75 lbs (34.kg) |
