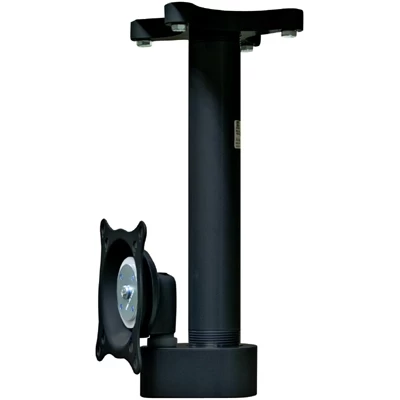

Chief FHSVB Small Flat Panel Single Ceiling Mount

Related Products

Part Number
FHSVB	Black Universal Flat Panel Single Ceiling Mount for 13 to 23″ Displays



Chief FHSVB single ceiling mount for small flat panel displays, LCDs and
monitors combines Centris fingertip tilt with a quick ceiling installation.

• Ceiling plate and extension column (Adjustable and Fixed) are required and must
  be ordered separately to fit your specific installation requirements



Technical Drawing



Specifications

Certifications	UL Listed
Color	Black
Mounting Pattern Compatibility (Universal Versions)	75 x 75mm, 100 x 100mm, 200 x 100mm
Orientation	Landscape, Portrait
Overall Dimensions (H x W x D)	5.4″ x 4.6″ x 4.6″ (138 x 116 x 118mm)
Pivot (numerical value)	Yes
Post-Installation Leveling (Roll)	Yes
Shipping Weight	FHS110B: 4.00 lbs FHSVB: 5.00 lbs
Solution Type	Universal
Tilt	+ 15°, – 15°
Typical Screen Sizes	13 – 23″
Weight Capacity	40 lbs (18.1kg)



Features

• Exclusive Centris Technology fingertip tilt self-adjusts to securely hold different display weights
• Screen angle stays set in place until you decide to readjust
• Post-installation leveling without tools
• Fast and easy screen positioning with lockdown capability
• Portrait and landscape rotation and side-to-side pivot
• Easily route cables through 1.5″ NPT extension column
