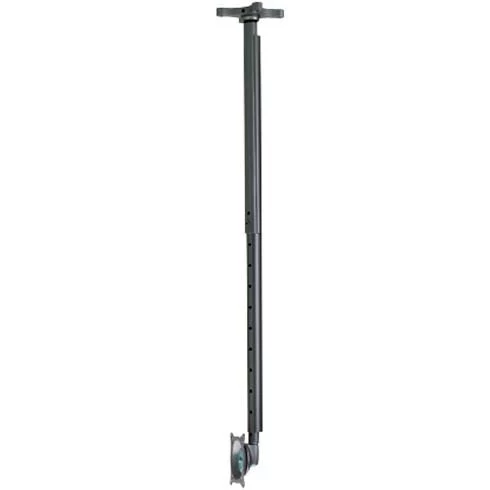

Chief FHP110B Small Flat Panel Ceiling Mount (10-26″)

Chief FHP110B ceiling mount features a variety of screen positioning options for
mounting a flat panel TV from the ceiling.

• Easy height adjustment, extends 23.61″ – 42.61″ (60 – 108.2 cm)



Technical Drawing



Specifications

Certifications	UL Listed
Color	Black
Extension	23.61″ – 42.61″ (60 – 108.2 cm)
Mounting Pattern Compatibility (Universal Versions)	75 x 75mm, 100 x 100mm
Orientation	Landscape, Portrait
Overall Dimensions (H x W x D)	4″ x 4″ x 20.6″ (10.2 x 10.2 x 52.3 mm)
Post-Installation Leveling (Roll)	Yes
Shipping Weight	10.00 lbs
Solution Type	Universal
Tilt	+ 15°, – 15°
Typical Screen Sizes	10 – 26″
Weight Capacity	40 lbs (18.1kg)



Features

• Includes ceiling plate, adjustable extension column, two plastic snap-on cable management covers, and pivot/tilt attachment to achieve a variety of screen positions
• Built-in cable management with snap-on cable covers
• Exclusive Centris Technology gravity-centered tilt self-adjusts to securely hold different display weights
• Portrait and landscape rotation and side-to-side pivot
• Includes all installation hardware
• VESA 75 x 75 mm and 100 x 100 mm compatible
