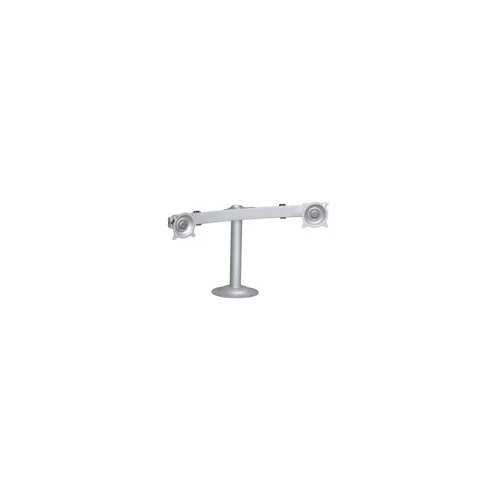

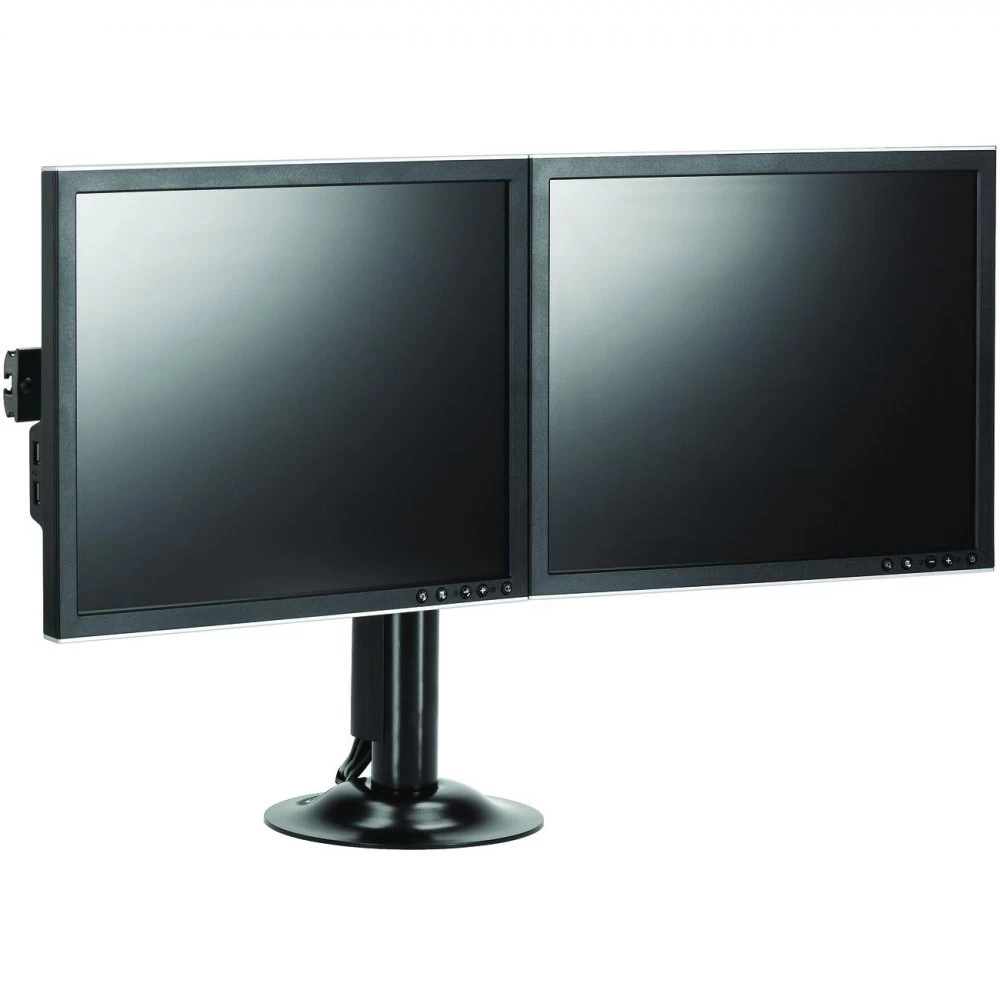

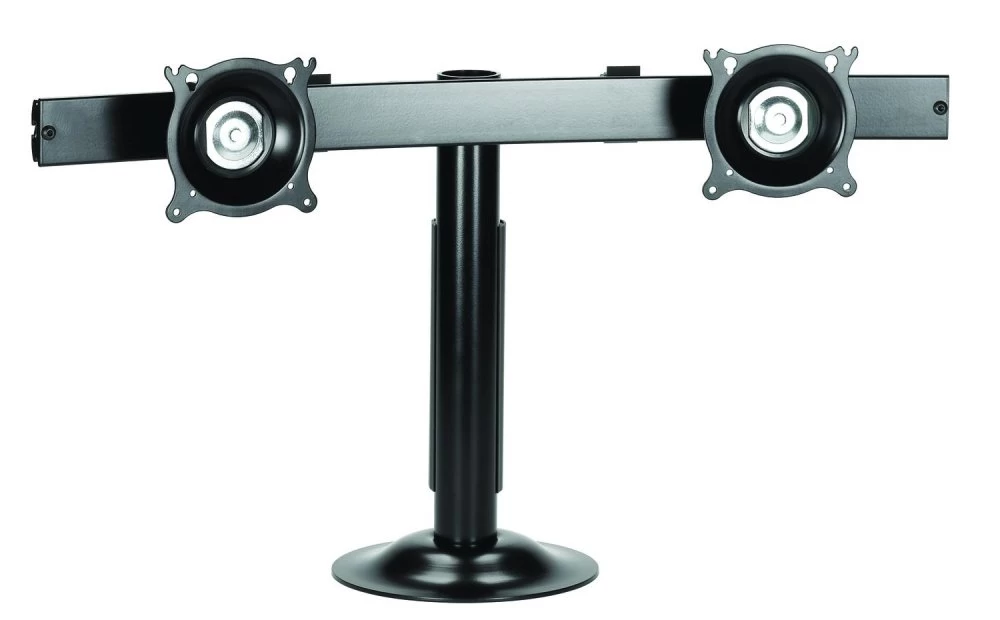

Chief KTG220 provides a rock solid, bolt-down solution for graphic
designers, broadcasters and other users who commonly work with multiple
small flat panel TVs or monitors.
- Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor
Technical Drawing
Specifications
| Color | Black, Silver |
| Desktop Thickness Range | 0.5 – 5″ (13 – 127mm) |
| Grommet Hole Size Range | 0.38 – 3.5″ (10 – 89mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Overall Dimensions (H x W x D) | 14.5″ x 27.3″ x 5.9″ (368 x 694 x 149mm) |
| Pole Length | 14″ (356 mm) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 17.5 lbs (7.94 kg) |
| Solution Type | Universal |
| Tilt | + 15° , – 15° |
| TV Height Range | 10 – 26″ (254 – 660mm) |
| TV Width Range | 10 – 22.7″ (254 – 577mm) |
| Typical Screen Sizes | 10 – 24″ |
| Weight Capacity | 35 lbs (15.9 kg) |
| Orientation | Landscape, Portrait |
Features
-
Centris Technology provides smooth, fingertip tilt in all
directions -
Screen angle stays set in place until you decide to re-adjust
-
Independent adjustment of each screen for proper ergonomic
alignment -
Teardrop hole pattern makes mounting the screens quick and easy
-
Heavy-duty, solid steel base and oversize pole for unmatched
stability -
Conceal and protect cables using snap-on covers and cable clip
-
Heavy-duty, solid steel bolting plates and oversized pole for
unmatched stability -
Integrated cable management
-
VESA 75 x 75 mm and 100 x 100 mm compatible
| Model | KTG220B, KTG220S |
| Manufacturer | Chief Mounts |
| Part Number | KTG220B, KTG220S |
| UPC | 841872098128 |
| Weight | lb(s) |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Monitor Arm Types | 2 Monitors |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 – 5 |
| Grommet Hole Size Range | 0.38 – 3.5 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 14.5 |
| Pole Length | 14 |
| Shipping Weight | 17.5 lbs (7.94 kg) |
| Tilt | + 15 degree, – 15 degree |
| TV Height Range | 10 – 26 |
| TV Width Range | 10 – 22.7 |
| Screen Size | 10 – 24 in |
| Weight Capacity | 35 lbs (15.9 kg) per monitor |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 24 |
| Monitor Placement | Side-by-Side |
| Price | $300 – $399 |
